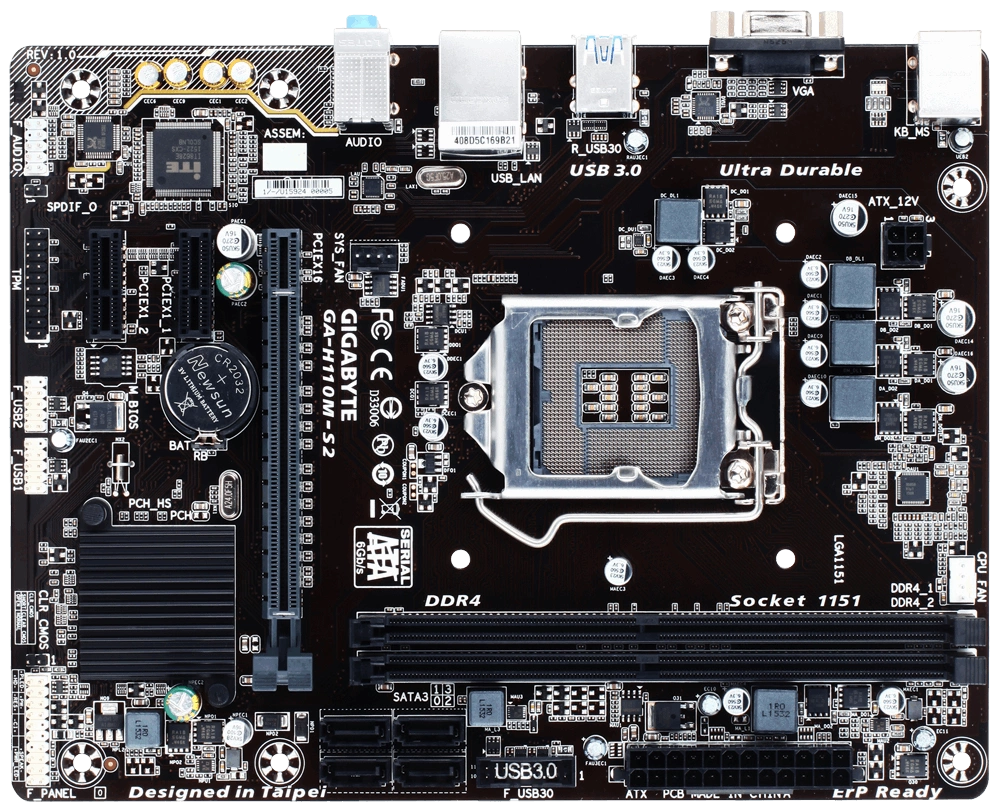

GIGABYTE GA-H110M-S2 INTEL H110 CHIPSET MOTHERBOARD

RM208.00
RM265.00-22%
Quantity
How to buy?
Delivery Options
Wp Kuala Lumpur,Kuala Lumpur,50450
Standard Delivery
Get by Fri 3 - Fri 10 Aug
RM4.90
Cash on Delivery not available
Return & Warranty
14 days easy return
Change of Mind applicable
3 Years Local Manufacturer Warranty
Sold by
Chat

Positive Seller Ratings

93%

Time on Lazada

2
+years

Seller Size

Product details of GIGABYTE GA-H110M-S2 INTEL H110 CHIPSET MOTHERBOARD

  • Supports 7th/ 6thGeneration Intel®Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Audio Noise Guard with High Quality Audio Capacitors
  • Realtek®GbE LAN with cFosSpeed Internet Accelerator Software
  • All new GIGABYTE™ APP Center, simple and easy use
  • Support Intel®Small Business Basics

GA-H110M-S2 (rev. 1.0)GA-H110M-S2 (rev. 1.0)



  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Audio Noise Guard with High Quality Audio Capacitors
  • Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
  • All new GIGABYTE™ APP Center, simple and easy use
  • Support Intel® Small Business Basics



CPU

(Please refer "CPU Support List" for more information.)

  1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel®Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
  2. L3 cache varies with CPU
  • Chipset

    1. Intel® H110 Express Chipset
  • Memory

    (Please refer "Memory Support List" for more information.)
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 2400/2133 MHz memory modules
    4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Onboard Graphics

    Integrated Graphics Processor - Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. Maximum shared memory of 1024 MB
  • Audio

    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN

    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots

    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The the PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface

    Chipset:
    1. 4 x SATA 6Gb/s connectors
  • USB

    Chipset:
    1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 3.0/2.0 header
    10. 2 x USB 2.0/1.1 headers
    11. 1 x Trusted Platform Module (TPM) header
    12. 1 x Clear CMOS jumper
  • Back Panel Connectors

    1. 1 x PS/2 mouse port
    2. 1 x PS/2 Keyboard port
    3. 1 x D-Sub port
    4. 2 x USB 3.0/2.0 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O Controller

    1. iTE® I/O Controller Chip
  • H/W Monitoring

    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System overheating warning
    5. CPU/System fan fail warning
    6. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS

    1. 1 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Smart TimeLock
      Smart Keyboard
      Smart Backup
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Smart Switch
    4. Support for Xpress Install
  • Bundle Software

    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System

    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor

    1. Micro ATX Form Factor; 22.6cm x 17.4cm
  • Remark

    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Specifications of GIGABYTE GA-H110M-S2 INTEL H110 CHIPSET MOTHERBOARD

  • Brand
    Gigabyte
  • SKU
    GI904ELACPET4VANMY-217978543
  • Warranty Period
    3 Years
  • Warranty Type
    Local Manufacturer Warranty
  • Delivery Option Express
    No
  • Model
    GA-H110M-S2
What’s in the box
1 x GIGABYTE GA-H110M-S2 INTEL H110 CHIPSET MOTHERBOARD
