GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD

RM745.00
RM799.00-7%
Installment

Up to 6 months, as low as RM124.17 per month.

Quantity
Only 1 items left
How to buy?
Delivery Options
Wp Kuala Lumpur,Kuala Lumpur,50450
Standard Delivery
Get by Wed 30 May - Wed 6 Jun
RM1.50
Cash on Delivery not available
Return & Warranty
14 days easy return
Change of Mind applicable
3 Years Local Manufacturer Warranty
Sold by
Chat Now

Positive Seller Ratings

93%

Time on Lazada

2
+years

Seller Size

Product details of GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
  • Front USB 3.1 Gen 1 Type-C™ Header
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
  • Killer™ E2500 Gaming Network

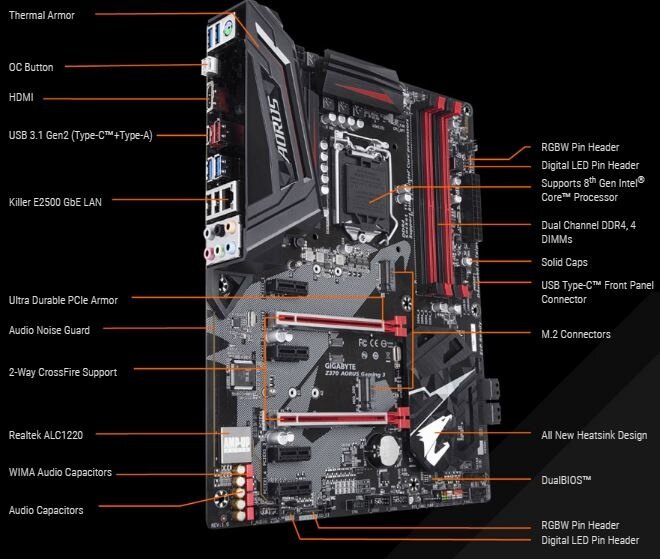

GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD





Z370 AORUS Gaming 3(1.0)

Intel Z370 Gaming motherboard with RGB Fusion, Dual M.2, 120dB SNR ALC1220, Killer Gaming LAN, Front USB 3.1 Gen 1 Type-C & Rear USB 3.1 Gen 2 Type-C, Smart Fan 5, Anti-Sulfur Resistors

  • Supports 8th Gen Intel® Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
  • Front USB 3.1 Gen 1 Type-C™ Header
  • Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
  • ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
  • Killer™ E2500 Gaming Network
  • RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Dual Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
  • Anti-Sulfur Resistors Design
  • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

CPU

  • (Please refer "CPU Support List" for more information.)
    1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package
    2. L3 cache varies with CPU
  • Chipset

    1. Intel® Z370 Express Chipset
  • Memory

    (Please refer "Memory Support List" for more information.)
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:Maximum shared memory of 1 GB
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.
  • Audio

    1. Realtek® ALC1220 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN

    1. Rivet Networks Killer™ E2500 LAN chip (10/100/1000 Mbit)
  • Expansion Slots

    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 4 x PCI Express x1 slots
      * The PCIEX4 slot shares bandwidth with the PCIEX1_2, 3, 4 slots. The PCIEX4 slot operates at up to x1 mode when the PCIEX1_2, 3, or 4 slot is populated.
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)
  • Storage Interface

    Chipset:Intel® Optane™ Memory Ready
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2Q_32G)
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      *Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology

    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • USB

    Chipset+ASMedia® USB 3.1 Gen 2 Controller:Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    3. 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
    4. 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    5. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 2 x system fan headers
    8. 1 x system fan/water cooling pump header
    9. 2 x digital LED strip headers
    10. 2 x digital LED strip power select jumpers
    11. 2 x RGB (RGBW) LED strip headers
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C™ header, with USB 3.1 Gen 1 support
    15. 1 x USB 3.1 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x S/PDIF Out header
    18. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    19. 1 x Thunderbolt™ add-in card connector
    20. 1 x chassis OC LED header
    21. 1 x chassis OC button header
    22. 1 x Clear CMOS jumper

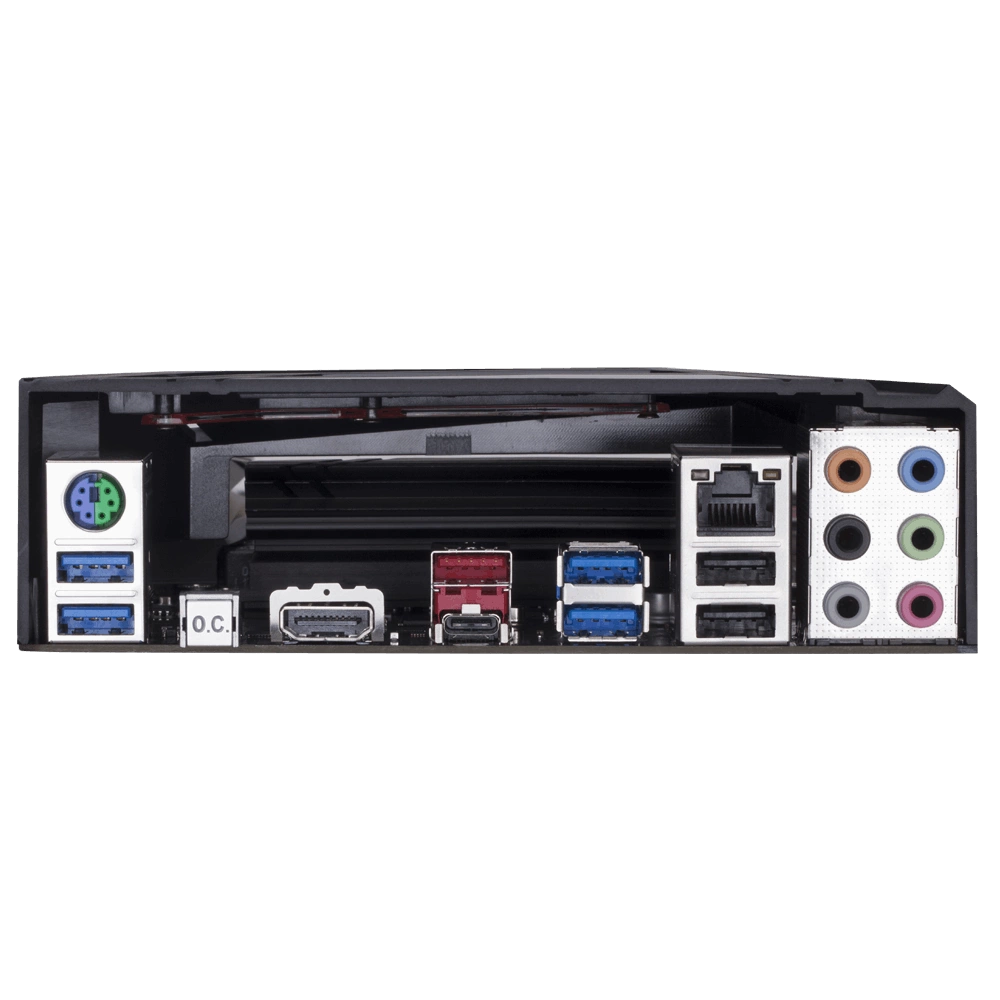

  • Back Panel Connectors

    1. 1 x PS/2 keyboard/mouse port
    2. 1 x OCSW button
    3. 1 x HDMI port
    4. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
    5. 1 x USB 3.1 Gen 2 Type-A port (red)
    6. 4 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller

    1. iTE® I/O Controller Chip
  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS

    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software

    1. Norton® Internet Security (OEM version)
  • Operating System

    1. Support for Windows 10 64-bit
  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark

    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Specifications of GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD

  • Brand
    Gigabyte
  • SKU
    GI904ELACDMZ3ZANMY-188998084
  • Warranty Period
    3 Years
  • Warranty Type
    Local Manufacturer Warranty
  • Model
    Z370 AORUS GAMING 3
What’s in the box
1 x GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD

Ratings & Reviews of GIGABYTE Z370 AORUS GAMING 3 GAMING MOTHERBOARD

0 out of 5
0 Ratings
  • 5 STAR
    0
  • 4 STAR
    0
  • 3 STAR
    0
  • 2 STAR
    0
  • 1 STAR
    0

This product has no reviews.

Let others know what do you think and be the first to write a review.

Questions about this product (13)
Other questions answered by EIT STORE (13)
  • sapport amd ryzen 3 1200
    Abdul M. - 4 weeks ago
    hi boss, this is for intel not amd
    EIT STORE - answered within 26 minutes
  • support intel optane?
    Evenezer A. - 4 weeks ago
    yes support
    EIT STORE - answered within 2 minutes
  • have gigabyte aorus h370 gaming 3 wifi??
    hahahax123 - 2 months ago
    no dont have wifi built in
    EIT STORE - answered within 7 hours
