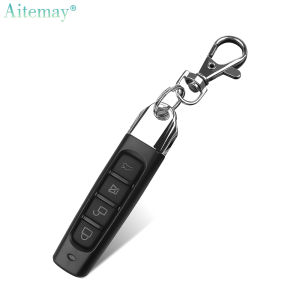

Aitemay 433MHZ Wireless Remote Control RF Remote Controller 4 Buttons Cloning Remote Switch Electric Code Duplicator Key

Features: Multifunctional and multifunctional, individual and convenient simple design and quick to use. This smart remote control is suitable for electric door remote control, telescopic remote control door, garage door remote control. Cloning chip type: 2260 (PT2260, SC2260, LX2260, HX2260); 2262, (PT2262, SC2262, LX2262, HS2262, HX2262), PT2264, lx (LX2240), 1527 (EV1527, HS1527, HX1527), FP527, CS5211, sm, SMC926, AX5026, AX5326-3, AX5326-4, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F629, PIC16F630 and so on. Different chip manufacturers have different model chip prefixes, while the digital part of the chip may be the same model. Note: Usually we do not recommend Copying a chip with a rolling code, because when copying a chip with a rolling code, there are many ambiguities. When copying the Rolling Pin code to a remote control chip, it is impossible to determine if the original remote control chip is an encryption chip. Therefore, we do not recommend Copying remote code management.

Specification: Material: Plastic. Size: 603612mm. Type: Wireless remote. For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on. Rated voltage: 12V Battery(included). Wireless transmission distance: 50-150 (m). (open space)

Application steps:

1. Clear Code: two fingers at the same time hold the key and unlock lock; LED light flashes quickly 3 times in 2 seconds; release one of the fingers (the other hand cannot let go), and then use your free finger to quickly press the free light button three times until the LED light flashes quickly; two fingers can let go; then press any one key of the remote control; when the LED light is off, it means that the clear code is successful (four keys are all empty); If the light is still on after pressing the button on the remote control, it means that the original code was not cleared successfully. You need to clean up again, and only successfully clearing the code can be successfully cloned. You can repeatedly clear and clone the code. 2.Copy: the left hand accepts the original remote control, the right hand accepts our cloned remote control and keep the two remote controls as close as possible; press the first keys of two remotes simultaneously; after about 2 seconds, the LED light will flash rapidly 2 times; after one second, the Indicator keeps blinking and releases fingers; and then presses the key after a successful study, the light is held on, which means that the first key code on the original remote control was copied to another remote control; the same method can be used when turning on the second key, the Third key ... If the copy is successful, then the remote control function coincides with the original suitable remote control.
2. Recovery: When you accidentally clear a copy of the remote control code, you can simultaneously press the copy of the remote control of the lower two keys, the LED indicator flashes quickly, release after pressing any key, light up, this means that the code for the remote control is restored. Before using our remote control, please remember to delete the valid code from the remote control.
3. How to solve the problem, when some keys can control, others can not control? You can use clean and restored work, the special operation is as follows: (1) the first clear code; (2) after clearing the code, copy the key again, and there is no need to copy the remaining buttons; (3) and then clear the code again; (4) recovery code; at this time, the original keys that were not successfully copied are now covered with new codes, and the original keys that were successfully copied are now saved. If after the second copy of the keys there is NO copy, repeat the above steps again and again until all keys are successfully copied.

Precautionary measures:

1. Select a remote control: the original remote control function is normal, the remote control chip is the same or compatible, the frequency of the remote control is the same.
2. The remote control can only copy a fixed code, find out the code chip and part of the remote control with one chip (you can copy the chip model see the type of chip with the copied chip).
3. Two-way remote control, rolling code remote control, single chip encryption program, remote control cannot be copied. Such as HCS200, HCS201, HCS300, HCS301 and so on.
4. Before copying the remote control, make sure that the valid code on the remote control has been cleared and verify that the code has been cleared. Otherwise, it cannot be copied.
5. Please make sure the remote control has enough power, the distance between the two remote controls is better! If the copy distance is too close to the switch at different angles for copying. Press and hold the button on the original remote control to send the signal completely normally, and then press the button on the remote control to make sure that the function is fully copied.

Package Included: 1 x 433MHz remote control duplicator.

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!

​​​​​​​
