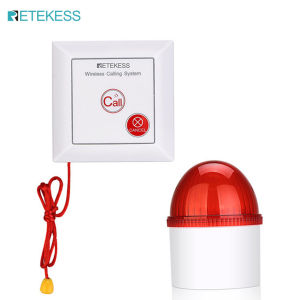

Retekess TH103 Caregiver Pager SystemWireless Strobe Siren3-Level Volume ControlPull Rope Waterproof Call Button for Home SafetySeniorsElderly

Description:

Install the receiver in the appropriate location, and when someone needs help, just press the call button or pull the rope on the pager, then the receiver will be flicker and siren. It is mainly used for emergency call alarm in homes, shops and other places.

The pager can be installed in the bathroom, the bedside of the elderly, etc. The receiver can be installed in the living room, caretaker's room, etc. If someone falls in the bathroom, or when the bedridden elderly needs help, he can pull the rope, and the receiver quickly sends out an alarm, so that people in need can get help quickly.

Features:

The appearance is red and white, which is clear at a glance.
Emergency call is easy to operate, just press the button or pull the rope.
The surface of the button is covered with PVC film, which has good waterproof performance.
A wall hanging device is designed to facilitate installation on the wall.
The receiver has three red LED lights, and the lights are dazzling when the alarm is given.
Mute, low volume and high volume modes can be set, and the maximum volume can reach 100dB.
One pagercan be matched with countless receivers, and one receiver can be matched with 20 callers.

Parameter：

		Pager




		Working voltage


		DC 6V




		Working frequency


		433.92MHz




		Working current


		12mA




		Transmit power


		15dBm




		Battery specification


		CR2032*2(Replaceable)




		Modulation Type


		AM（OOK）




		Size


		86*86*12mm




		Receiver




		Input Power


		DC12V/1A




		Working frequency


		433.92MHz




		Sensitivity


		＞103dBm




		Working current


		138mA±20mA




		Standby current


		≤10mA±2mA




		Volume


		≤100dB




		Size


		76*72*98mm



Packing List：

		Number


		Name


		Quantity




		1


		Pager


		1




		2


		Receiver


		1




		3


		Power adaptor


		1




		4


		Back glue


		2




		5


		Screw


		3




		6


		User manual


		1
