SP901E Led SPI Controller DC5V-24V LED Signal Amplifier 4CH Group Amplifier for DMX512 Pixel LED Strip Magic Module WS2812 2811

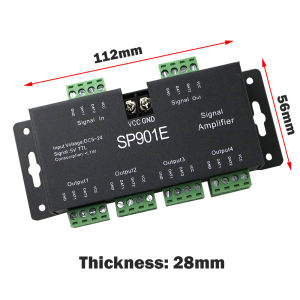

XZRTEL Multi LED China. Parameter: Working voltage: DC5V~24V. Working temperature: 20-60. Output: 8 channels 4 channels. Compatibale IC type: WS2812B, WS2811, SK6812, SK6812-RGBW, SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822, UCS1903, LPD6803, LPD8806, APA102. Static power consumption: Size: 112mm×56mm×28mm. This SPI signal amplifier is compatible with all kinds of 5V-TTL signal dual signals. It receives one signal and simultaneously output 4 or 8 channels of signals. Each channel can control the same quantity of LED pixels as main controller. It can output 8 channels for addressable LED strip with single data wire, such as WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, etc. It can output 4 channels for addressable LED strip with data clock wires WS2801, APA102, SK9822 or dual data wires, such as WS2813, WS2815. You can use one controller to control DC5V WS2812B and DC5V WS2813 LED strip at the same time, control DC12V WS2811, DC12V WS2815, DC12V1903, DC12V6803 at
