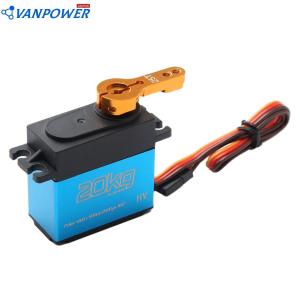

20kg Adjustable Digital Servo 180 Degree Stainless Steel Gear Servo Arm

20kg Adjustable Digital Servo 180 Degree Stainless Steel Gear Servo Waterproof 1/8 1/10 1/12 Scale RC Car Robot Ship Manipulator Metal Gear 25t Metal Arm Feature: High precision metal gears with hard anodized finish. CNC aluminum alloy shell. Specification: Control system: PWM control (1500 microseconds as the center point) Operating voltage: 4.8V - 6V Operating temperature: -20C° - +60C° Torque: 4.8V /17.2kg.cm 6.0V /20.3kg.cm Idle speed: 4.8V/0.15sec / 60 degrees 6.0V/0.13 seconds / 60 degrees Steering angle: 180 degrees Idle current: 4.8V/470mA 6.0V/650mA Load current: 4.8V/750mA 6.0V/950mA Dead zone: 2usec Life: >15000 no-load times Movement angle: 60°±10° Drive type: MOS drive Motor type: core motor Potentiometer Type: Direct Drive Signal  Type: Digital Size: 40.5X20.2X40.3mm Weight: 69g (without accessories) Ball bearing: 2BB Gear Material: Metal Gear Shell material: PA66+fiber 40% Line length: 260mm Wire Gauge Number and Plug Type: 26AWG, JR Plug Brown wire: negative Red wire: positive Orange Line: Singal Application: RC car, RC plane, helicopter Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2mm measuring deviation due to manual measurement.
