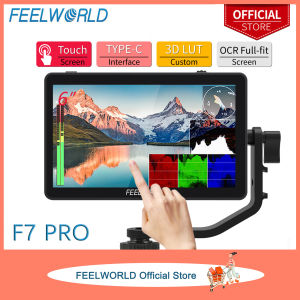

FEELWORLD F7 PRO 7 Inch Touch Screen DSLR Camera Field Monitor with 3D Lut HDR Waveform F970 External Power Install Kit 1920x1200 4K 60Hz HDMI Input Output

7” LCD Full HD Resolution

Viewing clearly and capture every detail

The F7 RPO provides a 7-inch screen and sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1200 high resolution and 16:10 display, 500cd/m2 brightness, 1200:1 contrast ratio, delivers excellent detail. The 160°wide viewing angle is convenient for monitoring from multiple angles.

Larger Screen with Easy Touch Controls

Simple and convenient, make your filming more efficient

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.

Touch Screen Operating Instruction

1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.

2. Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "<" or ">" key.

3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.

4. Click any space beside the menu to exit.

4K HDMI Signal Input and Output

Up to 4K 60Hz, Clearer Screen

F7 PRO supports 4K HDMI signal input and output up to 4K 60Hz, which is transmitted without loss and the screen is clearer.

Innovative External Install and Power Design

Simplify your photography equipment

A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others which can be powered by a Sony F970 battery. This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment. The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.

Multiple Power Supply Ways

F7 PRO can not only be powered by the F970 battery plate and 12V DC power input （can be using 12V/1.5A adapter）, but also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A)

● Compatible Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series.

Note: 1. The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power. 2.The battery not including, please purchase separately.

Rich and Professional Auxiliary Tools

Help director and camera assistant accurate exposure and focus

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.

Load Custom 3D LUTs，Preview Filming Look in Field Shooting

Support to load 50 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. F7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

Load Custom 3D LUTs，Preview Filming Look in Field Shooting

Support to load 50 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. F7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

Mini Hot Shoe Mount Adapter

Upper with 180° viewing angle, base with 360° rotation

The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

Portable Sun Hood Easy to Install

The monitor equips a sun hood, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.
