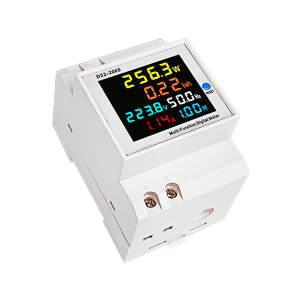

6IN1 Din Rail AC Volt Current Power Kwh Electric Energy Meter Monitor 110V 220V 380V Smart AMP 100A D52-2066

TAIYEDQ. Dimensions: 548064mm. Operating Temperature: 10~60. Accuracy Class: 1%. Display Type: Analog and Digital. Power Supply: AC. Model Number: D52-2066. Meter Type: Watt-hour Meter. Display Color: Red, Orange, Yellow, White, Green, Blue. Description. D52-2066 guide rail type digital display multi-function meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color full-view high-definition LCD display to display the measurement results. Specification. Measurement Accuracy: 1%±2 words. Measuring Range: AC voltage AC 40-300V110V220V use), AC 200-450V380V450V use). Alternating Current: AC 0-100V, current display resolution is 0.01A. Power Frequency: 45Hz-65Hz. Power Fator: 0.00-1.00PF. Active Power: the measurement range is 0-45000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1 W. Electricity: The measurement range is 0-99999kwh, The minimum displ
