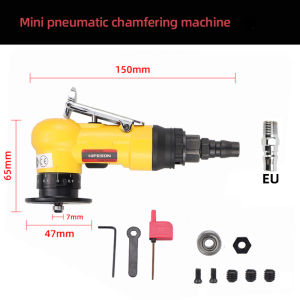

HIFESON Manual Pneumatic Chamfering Machine Arc Air Beveling Machine Linear Chamfering Tools 45° Metal Trimming Polishing Arc Corner Deburring Grinder Kit Air tools Metal Body

HIFESON Manual Pneumatic Chamfering Machine Arc Air Beveling Machine Linear Chamfering Tools 45° Metal Trimming Polishing Arc Corner Deburring Grinder Kit Air tools Metal BodyFeatures: The 1/4'' Pneumatic Chamfering Machine has a mini body, is light and convenient, can be chamfered in the narrowest and shallowest space and operated with one hand, fast cutting right and round corners. Equipped with metal safety switch and safety buckle. Alloy guide plate can effectively block chamfer waste. Using a sharp tungsten steel double cutter head, the cutting force is strong, sturdy, and durable. Equipped with an air intake adjustment switch, 5-speed air intake adjustment, and air intake size can be adjusted at will to meet your different work needs. To adjust the chamfer size, unscrew the screw, rotate to select the scale size, and tighten the screw. Equipped with a 360-degree rotating exhaust port, which can quickly exhaust and reduce the temperature of the machine. Used for deburring and chamfering the R side of metal trimming arc corners. Suitable for various angles, such as straight edge straight chamfering, inner and outer round hole chamfering, Irregular chamfering, multilateral chamfering of the keyway.

Specifications: Chamfering capacity    c0.1-c0.9 Chamfer plate thickness    >3mm Minimum chamfer diameter    7mm The shallowest opening depth    is 5mm Chamfering hole diameter    ≥ 8mm Intake pressure: 90Psi No-load speed: 22000rpm Weight    1.1pound

Package includes： Single:1 x Chamfering Machine            3 x Wrenches            1 x 1/4 Inch Air Inlet (EU)            2 x screws            1 x swivel bring            3 x cylinder screws            1 x front bearingC combo 1：1 x  Single package include                        6 x C angle heads                        4 x bearings                        4 x screwsR combo 2：1 x  Single package include                        6 x R angle heads                        4 x bearings                        4 x screws
