EKLEVA 4G Network Dash Cam 1080P WiFi Car DVR 1080P Camera Remote Phone APP Monitor Video Registrator Driving Recorder Dual Lens

EKLEVA New Full HD 1080P 4G WiFi Car DVR Dashboard Camera GPS Logger Dashcam with Rearview Camera

Product Description:

This product is a 4G universal car DVR with a high-definition 1080P camera.
One-click snapshot, parking monitoring, real-time remote live broadcast, track playback, Wi-Fi point-to-point preview.
4G network sharing, ultra-low power consumption, multi-functional high-definition dashcam.

4G SIM card supported frequency band

WCDMA ： B1(2100)


LTE FDD ：B1(2100)/B3(1800)

Features:

1. Live broadcast function Condition: The DVR needs to be online and the network connection is normal. Function introduction: you can remotely view the real-time dynamic picture of the vehicle on your mobile phone. After playing 1 minute, it will prompt whether to save the video on your mobile phone. Voice transmission: During the live broadcast, you can also tap (press and hold to speak), and the DVR will broadcast what you are talking about. (Note: Due to the real-time live broadcast function, it depends on the network status. If the network is not good, there may be a freeze or image delay)

2. Remote snapshot function Applicable scenarios: If you want to know the real-time status of the car, it will upload pictures and vehicle location information after you click on the snapshot.

3. How to view the video of the memory card in the DVR through a mobile phone.

   To view the video files accessed by the memory card through the mobile phone, the mobile phone must be connected to the hotspot of the recorder After the hotspot is connected, open the video cloud car APK, click the device information on the recorder interface, and the recorder file can view the corresponding video in the memory card For important videos, you can long-press the video and choose to download to your mobile phone, then you don't need to connect the recorder wifi to view the playback in the mobile phone album.

   4. Historical driving track query (check yesterday and previous driving tracks)

Difference between direct WiFi hotspot connection and 4G network connection

WIFI connection: the mobile phone is directly connected to the hotspot of the recorder. WIFI direct connection can preview the camera screen and directly access the content of the recorder memory card, and can directly playback or download the video files in the memory card to the mobile phone without consumption, Free of traffic, and not restricted by 4G network
4G network connection: Cannot access the contents of the memory card of the recorder. The other functions of the operation recorder depend on the 4G network strength of the mobile phone and the recorder, and there is a certain delay.

Specification:

Brand: EKLEVA
Model: DC25
Frame rate: 25fps
Solution (chip manufacturer): SL8521E, Cortex-A53 dual-core 1.3GHz
Assembly method: portable dashcam
Track record: Yes
APP language: Chinese, Japanese, English, French, German, Russian, Italian
Screen size: 2 inches
Display Type: 4line-SPI interface
Display resolution: 320*240
Pixel: 1080P
Weight: 0.7kg
Size: 105*55mm/4.16*2.17"
Image sensor: C2395, 4 Glass, 120 degrees
Number of cameras: 2
ROM: 512MB
RAM: 256MB
Satellite positioning: GPS + BDS, external passive antenna
Operating System: Linux
Software upgrade: support software update via TF card, OTA online upgrade
WIFI: 802.11b/g/n 2.4GHz, support WIFI hotspot
Remote monitoring: support mobile APP remote monitoring
Driving track playback: support
Remote live video: support remote live video and voice call
Video file viewing and downloading: Support viewing video files in TF card and downloading video files to mobile phones
Communication frequency band: WCMDA: B1; FDD-LTE: B1, B3
Collision file saving: 3-axis G-sensor sensor, support loop recording
Parking monitoring: 3-axis G-sensor sensor, support parking monitoring
Front camera: C2395, 4-Glass, 120 degrees
Rearview camera: USB 480P
Video: front 1920*1080 25fps, rear 640*480 15fps
Video compression standard: H.264
Storage: TF card, maximum support 128GB
Microphone: built-in highly sensitive microphone
Speaker: Built-in high-fidelity mono 1.5W/8R speaker
Button: power button, camera button, reset button
Reset function: support
Power supply: DC 12V, for BMW line input voltage 12V, support wide voltage range 9-16V
ACC: Support ACC detection
Photo format: JPG
Video format: TS
Video encoding: H.264
Shooting angle: 120 degrees
Supported memory card reading speed: Class 10
Working temperature: -20~+70℃
Storage temperature: -30~+80℃
Touch screen: No
Original box packaging: Yes

Note:

1. There may be slight size deviations due to manual measurement, different measuring methods, and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle, and display monitor.

Why choose EKLEVA DC25:

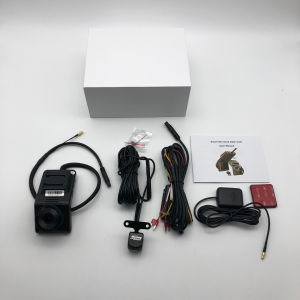

Package includes
