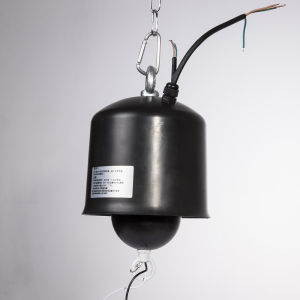

5KG 15 M Remote Control high bay lighting Hoist Electric Winch Lifting Light Lifter

Operation method Technical parametersAluminum casing light lifter1 remote control can use multiple liftersPower: 220V/50HZWireless remote control button instructionsPower: 50WRise button (A): control the lifter to the topSelf weight: 5kgDrop button (C): control the lift downAdaptation height: less than or equal to 15 metersStop button (D): control the lift to stop liftingMaximum ceiling: 15 metersReplacement batteryLifting speed: 2.5 m / minWhen the remote control is inoperative or insensitive, the battery should be replaced. If it is not used for a long time, the battery should be taken out.Protection against electric shock: Level 1Instructions for useProtection level: IP551: Use this product to connect the power supply (220V) correctly, and the incoming line is at the top terminal of the lifter.Fire rating: F2: This product does not work without load. When it is installed or used, it needs to load 3-15KG lamps. If the lamps are lowered to the ground, the lift will stop without gravity. When rising, you need to manually pull the wire rope to give it gravity.Maximum lifting weight allowed: 10 kg3: (1) Infrared remote control is point-to-point control. When sending a signal command, the remote control signal beam should face the signal receiver on the elevator to work. (2) The coded remote control does not need point-to-point, as long as it is within the effective distance of 30m. 『Insert: There must be no obstructions between remote control signal distances』Remote control distance: 30 meters4: It is forbidden to raise or lower the lift directly. The correct step is to rise-stop-fall and pause for 3 seconds per block, as well as anyway.Number of remote controls: 15: The lifter is equipped with an electromagnetic lock. After lifting it in place, you must press the stop button to reset the electromagnetic lock!Wire diameter: 1.5 (aviation grade)Installation method Motor type: DC motor1 Prepare the M10 expansion ring screw before installation. Remote control type: infrared, coding, remote control
