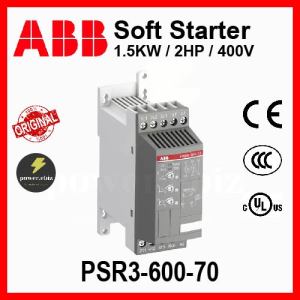

ABB SOFTSTARTER PSR3-600-70 1.5kW 2HP 400V SOFT STARTER (1SFA896103R7000)

ABB PSR3-600-70 1.5kW 2HP 400V SOFT STARTER (1SFA896103R7000)DimensionsProduct Net Width:114mmProduct Net Height:140mmProduct Net Depth / Length:45mmProduct Net Weight:0.4kgTechnicalRated Operational Voltage:208 ... 600 V ACRated Control Supply Voltage (Us):100 ... 240 V ACRated Control Circuit Voltage (Uc):50 Hz / 60 Hz 100 ... 240 V ACDC Operation 24 VRated Frequency (f):50/60 HzMain Circuit 50 / 60 HzRated Operational Power - In-Line Connection (Pe):(230 V) 1.5 kW(400 V) 3 kW(500 V) 4 kWRated Operational Current - In-Line Connection (Ie):6.8 AService Factor Percentage:100 %Overload Protection:Recommended MS116 4.00 ... 10.00Integrated Electronic Overload:NoAdjustable Rated Motor Current Ie:NoStarting Capacity at Maximum Rated Current Ie:4xIe for 6sRamp Time:0 ... 20 second [unit of time]1 ... 10 second [unit of time]Initial Voltage During Start:40 ... 70 %Step Down Voltage Special Ramp:100 ... 60 %Current Limit Function:NoSwitch for Inside Delta Connection:NoRun Signal Relay:YesBy-pass Signal Relay:NoFault Signal Relay:NoOverload Signal Relay:NoSignal indication completed start ramp (LED):GreenSignal indication ready to start/standby ON (LED):GreenSignal indication running R (LED):GreenSignal indication ramping up/down (LED):GreenNumber of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:10Communication:FiledBusPlug(Optional)Degree of Protection:IP20Terminal Type:Screw TerminalsConnecting Capacity Main Circuit:Rigid 1/2 x 0.75 ... 2.5 mm²Connecting Capacity Control Circuit:1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm²Rigid 1/2 x 0.75 ... 2.5 mm²Connecting Capacity Supply Circuit:Rigid 1/2 x 0.75 ... 2.5 mm²Tightening Torque:Control Circuit 1 N·mMain Circuit 1 N·mSupply Circuit 1 N·mProduct Main Type:PSR6
