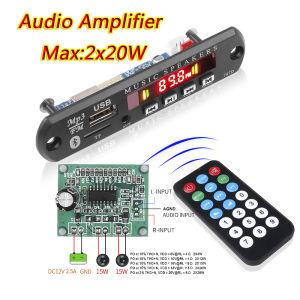

Bluetooth 5.0 MP3 Decoder Decoding Module DC 5V 12V Car USB MP3 Player WMA WAV TF Card Slot USB FM Remote Board Module

KEBIDU 1 GB. 2*20W. Folder switching function. Support function introduction: support MP3 USB TF LINE IN FM BLUETOOTH remote control connection DC 5V or 12V optional). About the structure: Panel size: 7550 MM, the panel is surrounded by screw holes, and then the surface is pasted with PVC lens, the depth of the board is 25MM. Feature: Model: JQ-D061BT. Main control IC: AB5362B. Bluetooth IC: AB5362B Bluetooth version is 5.0. Music format: MP3 WMA WAV FLAC APE lossless format. Radio FM frequency: 87.5-107.5 MHZ. Internal recording function, record LINE IN FM BLUETOOTH. The above are the functions of the buttons and interfaces. 1. U interface: connect to U disk maximum support 32GB). 2. LED: digital color screen display, digital display red. 3. AUX: audio input function. 4. TF: Connect TF memory card maximum support 32GB). 5. IR: an infrared receiver module. 6. PLAY/PAUSE: Short press is to switch between pause and play, the long press is to radio FM automatic station. 7. PREV/VOL-Short
