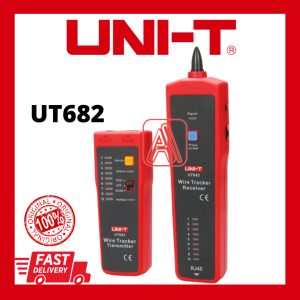

UNI-T UT682 / UT683KIT Wire Tracker/Tone and Probe for tracing LAN cable\telephone line\coaxial cable\electric wire

FEATURES:Product name: Wire TrackerPower supply: 9V Battery (NOT included)Signal transmission form: Multi frequency pulseShort circuit, open circuit test: √Telephone line polarity instructions: √Audio signal test range: ≥1000mVideo line distance: ≥100mLow battery indication(Transmitter):√Telephone Line Tracking FunctionA. Connect the telephone line head into the transmitter’s RJ11 interface;B. Press the transmitter functional select switch to the “TEST” positin. Line tracking indicator “Status” will flask, which indicates that the transmitter works properly;C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.D. During the testing, light press “Switch” button to switch between single and double audio test pattern.Network Line Tracking FunctionA: The network line with a crystal head into the transmitter RJ45 interface;B. Press the transmitter functional select switch to the “TEST” position, Line tracking indicator “Status” will flash, which indicates that the transmitter works properly;C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.D. During the testing, light press “Switch” button to switch between single and double audio test pattern.Power Cable Line Tracking Function (Power cable must not be powered)A. Connecting the transmitter with metal cable using alligator clip adapter wiring;B. Adjust the transmitter functional select switch to the “TEST” position, line tracking indicator “Status” will flash, which indicates that the transmitter works properly;C. Hold down the receiver “Press to test” button and look for the target cable with receiver probe.D. During the testing, light press “Switch” button to switch between single and double audio test pattern.
