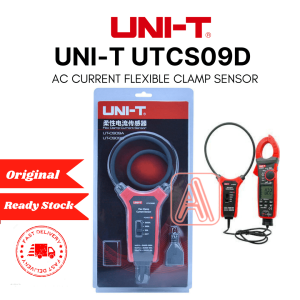

UNI-T UT-CS09D Flexible Clamp Sensor / UT208B 1000A True RMS Digital AC/DC Clamp Meter - up to AC/DC 1000A/1000V - with AC/DC Current/Voltage Measurement - Resistance/Capacitance/Frequency/Temperature Measurement

UT208B 1000A True RMS Digital Clamp MeterUT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.1. Flashlight button: Short press thisbutton to turn on/off the flashlight.2. Flexible current probe (optional) to extendthe AC current measurement range to3000A3. Inrush current capture4. NCV Multi-Segment Display and audio/visual alarm5. True RMS/Auto backlight6. NCV/Function retentionSpecificationsRangeUT208BAC current (A)1000A±(2%+5)DC current (A)1000A±(2%+5)AC current frequency response40Hz~400HzInrush current (A)1000A±(10%+10)AC voltage (V)6V±(1.2%+3)60V/600V/1000V±(1%+8)DC voltage (V)600mV±(0.8%+3)6V/60V±(0.5%+5)600V±(0.5%+5)1000V±(0.5%+5)Low pas filter (LPF ACV)600V/1000V±(2%+5)AC voltage frequency response40Hz~400HzLoZ ACV600V/1000V±(2%+5)Resistance (Ω)600Ω±(1%+3)6KΩ/60KΩ/600KΩ±(1%+2)6MΩ/60MΩ±(2%+8)Capacitance (F)60nF±(4%+25)600nF/6μF/60μF/600μF±(4%+5)6mF/60mF±(10%+9)Temperature (℃)-40℃~300℃±(1%+20)300℃~1000℃±(1%+2)Low voltage frequency (Hz)10Hz~1MHz±(0.1%+3)Duty cycle (%)10%~90%±(2.6%+7)FeaturesDisplay count6000Jaw opening42mmCurrent frequency50Hz~60HzHigh voltage frequency40Hz~400HzAnalog bar31Auto power off√Continuity test√Auto/Manual range√Low battery indication√Diode test√Relative mode/Data hold√MAX/MIN√Function selection√Flashlight√Wake-up function√Auto power off current: ＜50μA√Flexible current probe (optional)Extends to 3000A√Zero mode√Input impedance (ACV/DCV)≥10MΩ√
