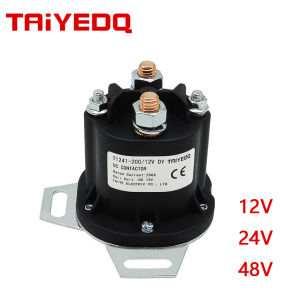

T1241-200 1NO DC Contactor 200A 12V 24V 48V Car Relay for Car Electric Forklift

TAIYEDQ. Model Number: T1241-200. Main Circuit Rating Current: 200A. Main Circuit Rating Voltage: 12V24V48V. Electricity Type: DC. Brand Name: TAIYEDQ. Origin: Mainland China. Certification: none. Contact Form: 1NO. Features. 1.200AContact Switching capability, 2. One set of normally open contact forms, 3. Coil power consumption is: 22~29W Min Max, 4. Application scope: oil pump startup, battery truck, electric forklift, electric winch, electric vehicle, excavator, automobile air conditionerOn off control of DC power supply system, 5. Product features: small volume, high breaking capacity, sealing protection, and can adapt to harsh service environment, Specification. Model: T1241-200. Contact Form: 1NO. Contact Material: Silver Alloy. Contact Load: 200A. Insulation Resistance: Min. 100M at 500VDC. Instantaneous Maximum Current: 600A, 1S. Pull In Time(ms): 30S. Release Time(ms): 50. Operating Ambient Temperature: 25~55. Working System: Short tern working system
