3650 3900KV Brushless Motor & Waterproof 45A 60A 80A 120A Brushless ESC with Programming card for RC Car RC Boat Part

45A ESC Specification:

Continuous Current: 45A

Burst Current: 180A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC Output: 5.8V / 3A

Power Supply Plug: T Plug Male

60A ESC Specifications:

Item Name: Waterproof ESC

Continue Current: 60A

Burst current: 320A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

Power supply plugs: T plug male

Motor plugs: 4mm banana plug female

80A ESC Specifications:

Continue Current: 80A

Burst Current: 480A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

Power Supply Plug: T Plug Male

Motor Plug: 4mm Banana Female Plug

Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

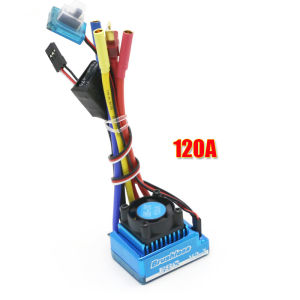

120A ESC Specifications:

Continuous Current: 120A

Burst Current: 480A / 10sec

Battery: 2-3s LiPo / 4-12s NiMh

BEC output: 5.3V / 5A(Switch Mode)

Power Supply Plug: T Male

Motor Plug: Female 5mm Bullet Connector

Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch

Programming Card for RC Car ESC Brushless Electronic Speed Controller

Features:

Light weight

Easy to use

Portable design

Programming Card for RC Car ESC Brushless Electronic Speed Controller, which

was specially designed for Brushless Electronic Speed Controller selled in our store.

Specifications:

Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off

Start mode:Medium, soft, strong

Max brake force: 25%, 50%, 75%, 100%

Max reverse force: 25%, 50%, 75%, 100%

Neutral range: 6%, 9%, 12%, work state
