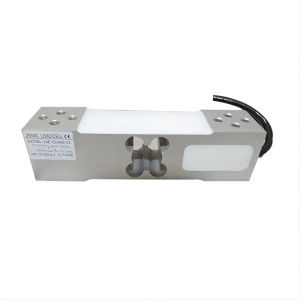

L6E3-C3 Weighing Sensor Load Cells 50KG 60KG 100KG 150KG 200KG 250KG 300KG

Hign-concerned Chemical None. Theory Resistance Sensor. Usage Pressure Sensor. Model Number L6E3-C3. Material Metal. Type: vibration sensor. Output: analog Sensor. Origin Mainland. Rated load 50/60/80/100/150/200/300KG. Maximum degree of verification 3000Nmax. mum verification score Emax/7000Vmin. Comprehensive Error ±0.020%FS. Creep ±0.0167%FS/30min. Effect of temperature on output sensitivity ±0.0175%FS/10. Effect of temperature on zero output ± 0.020 FS/10 °C. Output Sensitivity 2.0±0.2mV/V. Input impedance 406±6. Output impedance 350±3. Insulation impedance 5000(50VDC)M. Zero output 2%FS. Temperature Compensation Range: 1040?. Allowable temperature range-3570. Recommended excitation 5~12(DC)V. Maximum excitation volting: 18(DC)V. Safety overload range: 150 FS. Limit overload range: 300 FS. Four-angle error 0.02 loading value/100mm. ±0.020%FS/10. Product Paramenters. For Single Shipping: Express will be the best option, it's fast and safety. 10-20 working days can arrive. The only p
