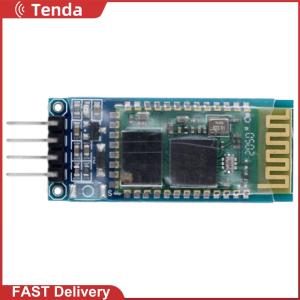

[Tenda]HC-05/HC-06 RF Wireless Transceiver Slave Module 3.6V-6V Bluetooth-Compatible RS232/TTL To UART Converter Adapter

HC-05/HC-06 RF Wireless Transceiver Slave Module 3.6V-6V Bluetooth-Compatible RS232/TTL To UART Converter Adapter with Base Plate Serial Port Communication BT Module for Arduino Feature: 1. Easy to Use: The RF wireless transceiver slave module features a simple interface and configuration process, allowing for quick Bluetooth-Compatible pairing and data transmission. It is plug-and-play, making it user-friendly and accessible for anyone. 2. Stable and Reliable: Built using mature Bluetooth-Compatible technology, this RS232/TTL to UART converter adapter offers stable and reliable performance, ensuring accurate and consistent data transmission. You can trust in its reliability for seamless connectivity. 3. Versatile Applications: This serial rf transceiver module finds applications in various fields such as IoT, smart homes, remote controllers, and wireless audio transmission. Its versatility allows it to be integrated into different devices or systems with ease. 4. Multiple Operating Modes: The serial port communication BT module supports multiple operating modes, including host mode and slave mode, enabling flexible use in different applications. You can adapt its functionality according to your specific needs. 5. Low Power Consumption Design: With its low power consumption design, this integrated BT module ensures extended battery life, making it suitable for mobile devices and low-power applications. It helps optimize energy usage and enhances the overall efficiency of your device. Specification: Origin: Mainland China Type: Module Condition: New HC-05: Can be set as host or slave by the user Wiring (only 4 wires required): RX to RXD/TX to TXD/GND to GND/3.6V to 6V Power supply: 3.3V Note: This module is not applicable to IOS systems. Size: 43 * 17 * 6MM/1.69x0.67x0.24inch (with base plate) 27 * 13 * 2MM/1.06x0.51x0.08inch (without base plate) HC-06: The outgoing interface includes VCC, GND, TXD, RXD, KEY pin high-level triggering to clear pairing information. The search indicator light indicates the Bluetooth-Compatible connection status, flashing unpaired, and slow flashing indicates paired but not connected from the machine. Please be sure to follow the backplane settings of the machine connection. The LDO input voltage is 3.6~6V, the unpaired current is about 30mA, and the paired current is 10mA. The input voltage must not exceed 7V, and reverse power supply is prohibited! The interface level is 3.3V, which can be directly connected to various devices (51, AVR, PIC, ARM, MSP430, etc.) or directly connected to 5V MCU. Without MAX232, MAX232 cannot be used! The effective distance of opening up to 10 meters can also exceed 10 meters, but this is not a guarantee of connection quality for distance. When using twisted pair cables in full duplex serial mode, it is not necessary to understand the Bluetooth-Compatible protocol, but only supports 8 data bits, 1 stop bit, and no parity communication format. This is a commonly used communication format and does not support other formats. Support establishing Bluetooth-Compatible connection through AT command, setting baud rate, password, setting parameters, and saving. The Bluetooth-Compatible connection automatically switches to direct mode. Wireless serial Bluetooth-Compatible port with free expansion cable. It has a transparent shrink tube, which is dustproof and aesthetically pleasing, and has a certain degree of anti-static ability. Size: 43 * 17 * 6MM/1.69x0.67x0.24inch (with base plate) 27 * 13 * 2MM/1.06x0.51x0.08inch (without base plate) Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
