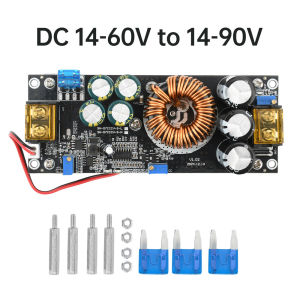

diymore | 1200W 20A Boost Power Module DC-DC Boost Converter Constant Voltage Constant Current Adjustable Voltage Converter Module

Features:1. High parameter adjustment: support higher input and output voltage range, suitable for a wider range of application scenarios2. Optimized circuit design: add MOS tube fast shutdown circuit to prevent short-circuit breakdown and improve safety3. Intelligent under-voltage protection: UVP potentiometer regulates under-voltage protection to prevent power supply overload and damage4. Constant current load adaptation: CC potentiometer regulates the output current, suitable for constant current loads5. High-current stability: line open tin window processing and copper resistance detection, to ensure stable operation under high currentParameter：Product Name：1200W 20A Boost Power ModuleInput voltage:Model A: DC 14-60VModel B: DC 14-85VModel C: DC 14-85VOutput voltage:Model A: DC 14-90V (±5V)B: DC 14-120V (±5V), output 120V, input voltage should be more than 20V.Model C: DC 14-90V (±5V)Input current: 20A (Max)Output regulation current:Model A: 1.5-20A (±0.5A)Model B: 1.5-18A (±0.5A)Model C: 1.5-20A (±0.5A)Input undervoltage protection range:Model A: 10-60V (±5V)Model B: 10-68V (±5V)Model C: 10-68V (±5V)Fan open temperature: 40 degreesInput reverse connection protection: YesTypical efficiency (input and output pressure difference is small efficiency is higher): 90%-96%Dimensions (with fan): 1305262mmAttention:1. 120V output, input voltage should be 20V or more.2. Input and output voltages try not to use the highest or lowest.3. The working current can not exceed the maximum input current of the power supply, the working current calculation method: output power divided by the input voltage times 1.06 (1.06 is the loss of power supply). For example: 1200W A model, for example, the input voltage 15V, output 48V, output load current 5A, 48V * 5a/15v * 1.06 = 16.96A, this time the working current is less than 20A, is able to work normally. If the load is 48V 7A, 48V * 7A / 15V * 1.06 = 23.75A, at this time the operating current is greater than the maximum input current of the power supply 20A is not available.4. on the efficiency: the smaller the difference between the input and output pressures, the higher the efficiency, the lower the efficiency of the pressure difference is large, if the input is 20V, the output is 120V. at this time the efficiency is the lowest, it will be lower than 90% of the following. The power of the input power supply should be greater than the load more than 1.5 times.5. It is strictly prohibited to output short-circuit current regulation.6. It is strictly prohibited to charge the super capacitor.7. The fan is temperature-controlled, the radiator temperature up to about 40 degrees before turning.Package include:Power module x1Accessories x1 (studs, fuse)
