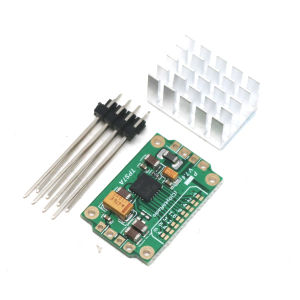

TPS7A4701 RF Low-Noise Voltage Regulator Power Supply DC-DC 3V-35V TO 3.3V 5V 9V 12V 15V 19V 24V Audio DAC Decoder Amplifiers

TPS7A4701 1A RF Linear Voltage Rregulator Power Converter DC 3V~35V To 3.3V 5V 9V 12V 15V 24V Hifi DAC Audio Amplifier OpampModule Name: TPS7A4701P1ASMDMounting Style: SMD or 2.54mm pin headerInput Voltage: DC +3V to +35VOutput Voltage: DC +1.4V to +20.5V  adjustable Solder joint required Output Current: 1000mAFeatures:Utilizes Texas Instruments TPS7A series low-noise voltage regulator ICOffers two output voltage configuration methodsEnhanced input/output filtering capability improves module PSRR (Power Supply Rejection Ratio)Built-in EN shutdown function and reverse polarity protectionAdjustable FB resistor supports wide voltage range customizationStandard 2.54mm pin pitch compliant with Chinese GB standardProduct Description:The TPS7A4701P1ASMD module is a low-noise buck-type linear positive voltage regulator module, widely used in:RF circuit applicationsAudio DAC decoding circuitsInstrumentation amplifiers and ADC circuitsPrecision analog systems requiring clean power supply Performance Index STD: refer to chip specification Description Size (unit: mm) :L28 x W18.4 x H10mmComponent sources :Tl,AVX, kemet, Samsung,Murata, Yageo, Sunlord.Manufacturing Technology ：Lead-free technology, machine mountInterface Mode : SMD,2.54mm pin connectionInput Voltage : DC +3V~+35VOutput Voltage :DC +1.4V~+20.5V;+1.4~34V (adjust FB R1/R2)Output Current :1000mA(MAX)Output Accuracy : 0.01VDropout Voltage : 0.4VIQ : ON:Input 30V, output 15V,4mA;OFF < 1mA(By EN pin)PSRR : ~86dB(100Hz)Vrms : ~4.7uVLine Transient :+/-0.06%(1A/0-2000mV)Load Transient : +/-0.4%(5V/0~1A)EN : support (Low for shutdown, otherwise turn on)VIOC : Not supportElectrical lsolation : NOWorking Temperature : -20°℃ ～+85°℃Working Humidity :20% ~90%，No condensationStorage Temperature :-40°℃～+125°℃Aging Test : >72 hours Working Life : STD Note the line transient calculation method:for example, while input is 12V，0.06% indicate input range change in 10V-14V..
