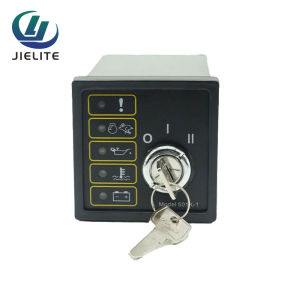

DSE501K Generator Controller Unit Replacement Manual Key Start Control Panel Module DSE 501 for Engine Parts

Product Description. The Model 501K-1 is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on The front panel. The module is used to start and stop the engine, indicating fault conditions. automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation. SPECIFICATION. A. DC Supply-9~33V continuous. B. Alternator Input Range-15~305V AC RMSC. Alternator Input Frequency-50~60Hz at rated engine speed. D. Magnetic Input Range-0.5V-80VE. Magnetic Input Frequency-2300Hz~6000HzF. Start Relay Output-16 Amp DC at supply voltageG. Run Relay Output-16 Amp DC at supply voltageH. Alarm Output-1Amp DC at supply voltageI. Operating Temperature Range-30~70celsiu
