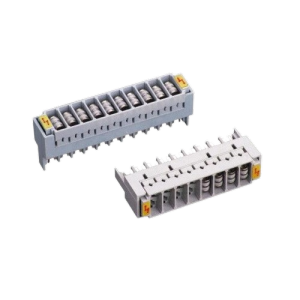

❤️ 3 Pole 10 Pair Over-voltage Gas Tube Arrester Protection Magazine for 10 Pair Krone Module

📌3 Pole Gas Tube Arrester Protector Magazine👉Key Specifications/Special Features:✅Size (mm) L x W x H: 10 pairs: 112 x 22 x 42✅Over-voltage barrier property parameter: direct current electric breakdown strength: Udc=190 to 260V Pulse electric breakdown strength: Umax <=800V✅Environment condition: 5-40 degree Celsius Relative humidity <85% (+30 degree Celsius) Atmospheric pressure: 70-106KPa .✅The performance of anti-burn: PBT or anti-burn ABS UL94V-0,Combustibility achieved GB/T 5169.7-1985 standard metal: tin bronze and silver plating (20-40 uinch)✅Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections✅Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition✅Dielectric strength: according to industry standard📌Type: 3-pole, with fail-safe device and without fail-safe device👉specification: 10 pairs✅Will accept 0.4 - 1.1mm (26-18 gauge) solid copper conductors.✅All plastic housing is twenty year life cycle tested.📦what’s in the box1 x 10-pair Magazine with 3-Pole Gas Tube Surge Arrestor ( SURP-10P )
