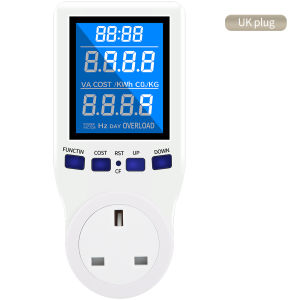

juan juan | AC Digital Wattmeter LCD Socket Power Meter Electricy consumption Energy Meter Electricity Meter Electricity Usage Monitor Plug

AC EU Digital Wattmeter LCD Power Meter Electricy consumption Energy Meter Kwh Energy Meter Electricity Meter Electricity Usage Monitor PlugTechnical specification:Operating voltage:  110---230V, 50-60HZOperating current:  max 15AWide voltage range: 110V----230VTiming display range: 0secong----9999daysWattage display (watts): 0W----9999WVoltage Display range: 0V----9999VCurrent Display(amps): 0.000A----15.000AFrequency Display: 0Hz----9999HzMinimum Wattage display range:0W----9999WMaximum Wattage display range: 0W----9999WPrice display range:0.00€/KWH----99.99€/KWHTotal KWH and cost display:0.00KWH----9999KWH0.00€ ----99.99€Installing the batteries Built-in3.6VrechargeableBatteries(NI-MH).Thepurposeofistostorethetotalelectricityandmemorysetting  Resetting If an abnormal display appears or the buttons produce no response, the instrument must be reset, To do  this, press the RESET buttonOverload Display:When the power socket connects the load over 3680W, LCD on second line displays the “OVERLOAD” with booming noise to warn the users(selectable choice)Display Mode:Entire LCD can be displayed for about 1 minute and then it automatically gets into Mode1,To transfer from on mode to the other, press the FUNCTION buttonMode 1:Time/Watt/Cost Display   Display duration（how long）this device connect to power source. LCD on first line shows 0:00 with first two figures mean minutes(2 figures will occur while occur at 10min) and the rest shows seconds. After 60mins,it displays 0:00 again with first two numbers means hour(2Figures will occur at 10hours)and the rest shows minutes .The rest can be done in the same manner which Means after 24 hours, it will recalculate.LCD on second line displays current power which ranges in 0.0W-9999W. LCD on third line displays the current electricity costs which ranges in 0.0cost-9999cost.It will keep on 0.00cost before setting rate without other figures.Mode 2:Time/Cumulative electrical quantity Display    Display duration(how long)this device connect to power source.LCD on first line show 0:00 with first two figures mean minutes(2 figures will occur while occur at 10min) and the rest shows seconds. After 60mins,it displays 0:00 again with first two numbers means hour (2 Figures will occur at 10hours)and the rest shows minutes .The rest can be done in the same manner which Means after 24 hours, it will recalculate.LCD on second line displays current cumulative electrical quantity which ranges in 0.000KWH-9999KWH without other figures. LCD on third line displays“DAY”—“1”will be showed on numerical part(the other three figures will be showed at carry) which means it has cumulated electrical quantity for 24 hours (one day). The rest can be done in the same manner until the maximal cumulative time of 9999 days.Mode 3:Time/Voltage/Frequency Display LCD on first line displays the same as Mode 1 done. LCD on second line displays current voltage supply (v) which ranges in 0.0V-9999V. LCD on third line displays current frequency (HZ) which ranges in 0.0HZ-9999HZ without other figuresMode 4:Time/Current/Power Factor Display   LCD on first line displays the same as Mode 1 done.LCD on second line displays load current which ranges in 0.000A-9999A. LCD on third line displays currentPower factor which ranges in 0.00PF-1.0PF without other figures.Mode 5:Time/Minimum Power Display  LCD on first line displays the same as Mode 1 done.LCD on second line displays the minimum power which ranges in 0.0W-9999W. LCD on third line displays Character of “Lo” without other figures.Mode 6:Time/Maximal Power Display   LCD on first line displays the same as Mode 1 done.LCD on second line displays the maximal power which ranges in 0.0W-9999W. LCD on third line displays Character of “Hi” without other figures.Mode 7:Time/Price Display   LCD on first line displays the same as Mode 1 done.LCD on third lineDisplays the cost which ranges in 0.00COST/KWH-99.99COST/KWH. Without other figures.Supplemental informations:1:Except“OVERLOAD” interface, LCD on first line display time in repetition within 24hours.2:LCD on first line, second line or third line described in this take section according to two blackLines on LCD screen. Here it added for clarified purpose.3:Mode 7 will directly occur while press down button “cost”.4:“UP”&“DOWN” are in no function under un-setting modeSetting Mode1.Electricity price settingAfter keeping COST button pressed lasting more than 3 seconds (LCD on third line display system defaults Price, eg 0.00COST/KWH).the rendered content begins moving up and down which means that the device has entered the setting mode. Then press FUNCTION button to change selection and press UP/DOWN to set what you want. (On pressing once, the figure after decimal point will increase or decrease accordingly. On pressing and hold-on, figures after decimal point will increase or decrease slowly in 2 seconds while figures change quickly when hold on time exceeds 2 seconds. When hold-on time reaches 10 seconds or more, the figures after decimal point will stop while the figures before decimal point begin to increasing or decreasing.) After that, press FUNCTION for switching ,then press “UP” and “DOWN” button again to set value which ranges in 00.00COST/KWH-99.99COST/KWH, After setting all above, press COST to return to Mode7 or it will automatically return to Mode7 without any pressing after setting with data storage.
