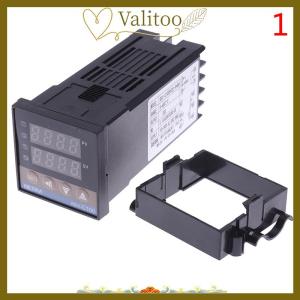

[Valitoo] 100-240VAC PID REX-C100 Temperature Controller SSR-40A Thermocouple

Measuring accuracy: 0.5%FS. Cold-end compensation tolerance: 2 Celsius(can be modified by software in 0 50 Celsius. Resolution: 14 bit. Sampling cycle: 0.5 Sec. Power: AC 100-240V50 60HZ. Process value PV), Setting value SV. PIN control including ON OFF, step-type PID and continuous PID. Self-tuning control. Relay output: contact capacity 250V AC 3A resistive load. Proportional band P): 0 full range ON OFF control when set to 0. Detective temperature range: 0 to 900 Celsius. Insulation resistance: more than the 50M ohm(500V DC. Insulation resistance: 1500V AC min. Insulation resistance: Power Consumption Less than 10 VA. Service environment: 0 50 Celsius. Environment with no corrosive gas 3085 RH. Aluminum Alloy Heat Sink. Specification: Materail: Aluminium alloy. Size: Roof: 50mmX60mm. Foot: 80mmX50mm. Height: 43mm. Compatible with: Designed specially for single phase solid state relay. Color: Silver. Max. 40A SSR. Output Current: 40A. Input Voltage: DC 3-32V. Output Voltage: 24-380V
