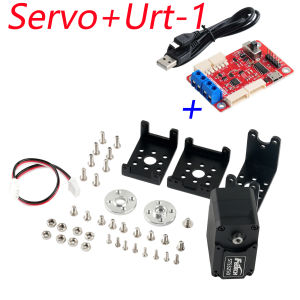

Feetech STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Coreless Motor Aluminum Case 360 Degrees Serial Bus Smart Servo

FEETECH STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Metal Gear Large Torque Camera Servo for Torque Drive RobotsDescription Feetech STS3250 12V 50KG Magnetic Encoder Double Shaft TTL Servo Coreless Motor Aluminum Case 360 Degrees Serial Bus Smart Servo for RobotSTS3250 is 12V 50kg serial bus smart servo, aluminum alloy case is used, coreless motor, metal gearbox 、Feetech self researched and developed TTL control board，12 bit high precision magnetic coding sensor. The stall torque is 50kg.cm，can achieve 0-360 degrees any angle controllable, multi-turn continuous operation mode, it can realize the function of setting the middle point with one key, acceleration slow start and slow stop, can feedback position, speed, voltage, current, temperature, load parameters, thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.Model：ST-3250-C001Product Name:12V 50KG Magnetic Encoder Double Shaft TTL ServoStorage Temperature Range-30℃～80℃Operating Temperature Range:-20℃～60℃Size:A：45.22mm B：24.72mm C：35mmWeight:74.5± 1gGear type:steel GearLimit angle:NO limitBearing:Ball bearingsHorn gear spline:25T/OD5.9mmThe rocker phantom：0°Case:Aluminium Connector wire:15CMMotor:Coreless MotorOperating Voltage Range:6-12VNo load speed:0.133sec/60°@12VRunnig current(at no load) :280mA@12VPeak stall torque:50kg.cm@12VRated torque:16kg.cm@12VStall current:4.2A@12VCommand signal:Digital PacketProtocol Type:Half Duplex Asynchronous Serial CommunicationID range:0-253Communication Speed:38400bps ~ 1 MbpsRunning degree:360° (when 0~4096)Neutral Position：180°（2048）Feedback:Load, Position, Speed, Input Voltage, Temperature
