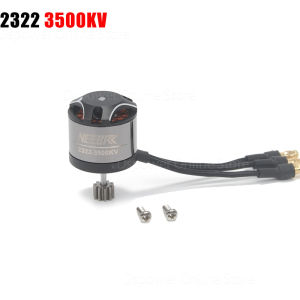

NEEBRC 2322 2600KV 3500KV Brushless Motor AM32 45A Metal ESC SM3.0 Plug for 1/12 RC Crawler Car MN99 MN168 MN78 MN82 Upgrade Kit

Features:Perfectly fit metal and original gearbox, 14X14mm aperture, no need to expand the gearboxSmaller size, stronger powerNo need to polish the bottom shell or car shell during installationAfter modification, low-speed torque compensation, better linearity, easy to climbSpecification:Applicable vehicle models: MN82 MN99S MN168 MN78Product: 2322 3500KV external climbing motorRated voltage: 7.4[VDC] 1-3SNo-load current: ≤1.3ANo-load speed: 26000±5%[rpm]Motor internal resistance (mQ) (ambient temperature: 25 ° C): 42mΩ±3%Number of extreme slots：12N14PKV：3500KVWeight：32.5gDirection: CCW/CW (viewed from the output shaft end)Number of gear teeth: 10TProduct: 2322 2600KV external climbing motorUsing voltage range: 5.5-9VRated voltage: 7.2[VDC]No-load current: 1200 [mA] maxNo-load speed: 19000±10%[rpm]Load torque: 100 [gf.cm]Load speed: 17000+10% [rpm]Direction: CCW/CW (viewed from the output shaft end)Insulation grade: Class BAxial play: 0.3 [mm] maxNumber of gear teeth: 10TFeatures:1-Simulated FOC,extremely excellent low-speed linearity and powerful low-speed torque2-Parameter adjusters and software can be used to adjust and adapt to various types of motors3-Low internal resistance Mos tube, strong impact resistance4-Waterproof treatmentNew AM32 45A ESC Specification:Voltage:7.4-11.1VLipo:2-3SBEC Output:5V/2ABattery Connector:SM3.0 PlugContinuous/Peak Current:45A/260AMotor Type: 2322/2204/2205 Outer rotor motorsCompatible Vehicles：1：18/1：12 Climbing/Off Road VehicleDimensions: 32.525.59.5mmCase Material: CNC Metal CaseOld AM32 45A ESC Specification:Voltage:7.4-11.1VLipo:2-3SBattery Connector:SM3.0/T PlugCont.Current:45AStart-up:Sine startLow speed torque compensation: Comes with low-speed torque compensationSize:38.52818.5mmCase Material:Plastic
