Strong Exhaust Fan 6/8/10/12 Inch Standard Wall Ventilation Fan Household For Kitchen/Room/Bathroom

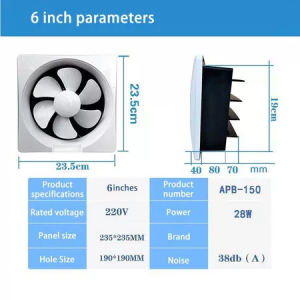

Exhaust Fan (6/8/10/12inch) Wall Mounted / Ceiling Mounted Ventilation Fan For Kitchen/Room/BathroomProduct parameter：【6 inch louver fan】A-A：234234mmB：37mmC：13.8mmD-D：198198mmE：88mmF：138.8mmSpeed: 1050 r/minFunction: One-way exhaustVoltage: 220V-265V/50HzPower: 25 wAir volume: 4.1 m3/minNoise: 40 dB (A)Application site: ≥10 ㎡Weight: 1.20kg【8 inch louver fan】A-A：292292mmB：41mmC：32mmD-D：238238mmE：93mmF：166mmSpeed: 1050 r/minFunction: One-way exhaustVoltage: 220V-265V/50HzPower: 30 wAir volume: 8.1 m3/minNoise: 45 dB (A)Application site: 10-20 ㎡Weight: 1.30kg【10 inch louver fan】A-A：339339mmB：47mmC：39mmD-D：284284mmE：93mmF：179mmSpeed: 1050 r/minFunction: One-way exhaustVoltage: 220V-265V/50HzPower: 35 wAir volume: 12 m3/minNoise: 50 dB (A)Application site: 20-40 ㎡Weight: 1.76kg【12 inch louver fan】A-A：394394mmB：41mmC：40mmD-D：327327mmE：102mmF：183mmSpeed: 1050 r/minFunction: One-way exhaustVoltage: 220V-265V/50HzPower: 55 wAir volume: 16 m3/minNoise: 55 dB (A)Application site: 40-55 ㎡Weight: 1.96kg❗️Note: The products are all measured manually, and there may be an error of 0.5~1cm. Please refer to the actual product for details.Speed up indoor air circulationSimply open a new breathing experience◾️6 large pitch blades◾️Form a strong suction, quickly remove the peculiar smell of oil fume.◾️Rapid ventilation◾️Fresh and natural◾️Strong wind、high strength、Low resistance、High-quality materials◾️High-quality and high-efficiency bearing motor◾️Large air volume, low noise, smooth and more worry-free.Protective net cover for effective protectionIt prevents accidental touching of the fan blades or flying in of foreign objects, and the safety is high.More beautiful and generous, detachable and easy to clean, effectively blocking oily smokeWhen energized, the wind pressure opens the valveWhen the power is off, the valve closes automaticallyPrevent mosquitoes and rainwater from entering backHigh quality Polypropylene materialNew engineering material, chemical resistance, easy to clean, not afraid of humid environment✔️Applicable sceneliving room、bedroom、bathroom、kitchen、officeEasy to disassemble and washRemovable machine cover / fan bladePanel shellWhen the casing gets dirty, it can be removed and cleanedWhirlpool fanExcessive oil pollution will affect the exhaust air volume, and the exhaust air effect will be better after dismantling and washingRemovable oil tankDrain the oil fume adsorbed on the surface of the machine body into the oil tank to reduce the turbulent flow of oil pollution1. Remove the exhaust fan panel, fan blades and front cover.2. Put the window frame body into the reserved installation hole.3. Fix the exhaust fan.4. Complete the installation after reinstalling the fan blades, front cover and panel.
