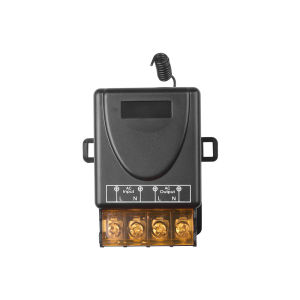

(HD1)Ac 110v/220v rf 433mhz transmitter receiver - 1ch relay remote control module
(HD1)Ac 110v/220v rf 433mhz transmitter receiver - 1ch relay remote control module
- Operating voltage: DC12V-72V2. Quiescent condition: Less than 8mA3. Operating temperature: -40°C to +80°C4. Receiver sensitivity: more than -105dBm5. Operating frequency: 433mhz6. Output voltage: Input = output7. Maximum load current: 10A8. Size: 105 x 51 x 30mm9. Power: 3000WWorking Modes:Momentary: Relay: Press and hold -> On; Release -> Off.Toggle: Relay: Press -> On; Press the same button again -> Off.Latched: Relay: Press -> On; Press another button -> Off.Delay time:Press remote control button, the corresponding relay actuates and keeps working until the time runs out.Learning and Clearing Method:Input 12V for the Receiver,Momentary: Press the Learning Button once. The LED indicator flashes once, then press the transmitter, the LED indicator flashes three times, learning is successful.Toggle: Press the Learning Button twice. The LED indicator flashes twice, then press the transmitter, the LED indicator flashes three times, learning is successful.Latched: Press the Learning Button three times. The LED indicator flashes three times, then press the transmitter, the LED indicator flashes three times, learning is successful.Delay time (5S): Press the Learning Button four times. The LED indicator flashes four times, then press the transmitter, the LED indicator flashes three times, learning is successful.Delay time (10S): Press the Learning Button five times. The LED indicator flashes five times, then press the transmitter, the LED indicator flashes three times, learning is successful.Delay time (15S): Press the Learning Button six times. The LED indicator flashes six times, then press the transmitter, the LED indicator flashes three times, learning is successful.Clearing: Press the Learning button for 8 seconds. Until the receiver LED indicator flashes three times and turns off, it means the code has been cleared.About Transmitter:1. Buttons: 2 Buttons2. (No information provided)3. Operating frequency: 433MHz4. Remote Distance: 20-70M5. Operating Current: 13mAh6. Encoding: EV1527 code7. Size: 5.7 x 3.2 x 1.1cm 1. Voltan kerja: DC12V-72V2. Keadaan diam: Kurang daripada 8mA3. Suhu kerja: -40 Darjah +80 Darjah4. Sensitiviti penerima: lebih daripada -105dBm5. Kekerapan kerja: 433mhz6. Voltan keluaran: Input=keluaran8. Arus beban maksimum: 10A9. Saiz: 105 x51 x 30mmKUASA: 3000WMengenai Cara Kerja:Momentari: Relay: Tekan dan tahan -> Hidup; Lepaskan -> Mati.Toggle: Relay: Tekan -> Hidup; Tekan butang sama lagi -> Mati.Latched: Relay: Tekan -> Hidup; Tekan butang lain -> Mati.Masa tunda:Tekan butang alat kawalan jauh, geganti yang sepadan akan bertindak dan terus berfungsi sehingga masa tamat.Mengenai Kaedah Pembelajaran dan Pengosongan:Masukkan 12V untuk Penerima,Momentari: tekan Butang Pembelajaran 1 kali. Penunjuk Led berkelip 1 kali, Kemudian tekan alat kawalan jauh, Penunjuk Led berkelip selama 3 kali, belajar berjaya.Toggle: tekan Butang Pembelajaran 2 kali. Penunjuk Led berkelip 2 k
