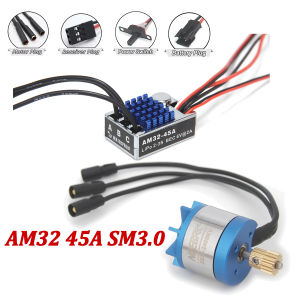

NEEBRC 2830 2400KV Outrunner Brushless Motor 14T Gear T/SM3.0 Plug 45A ESC for 1/12 RC MN128 Climbing Crawler Car Model Parts

NEEBRC 2830 2400KV Outrunner Brushless Motor 14T Gear T/SM3.0 Plug 45A ESC for 1/12 RC MN128 Climbing Crawler Car Model Parts

Please note: The casing of the ESC is made of plastic, not metal.

Features:

Perfectly fit metal and original gearbox, 14x14mm aperture, no need to expand the gearbox

Smaller size, stronger power

No need to polish the bottom shell or car shell during installation

After modification, low-speed torque compensation, better linearity, easy to climb

Specification:

Product:  2830 2400KV external climbing motor

Power supply : 2-3S

No-load current :0.5A

Magnetic poles : 14 poles

Motor connector type: 3.5mm banana plug

Number of teeth: 14T

Gear module: 0.6 module

Gear aperture: 3.17mm

Applicable to Mangniu series models: MN128,The original climbing car used 390 380 carbon brush motor 【For other models using the 390 or 380 motor, during installation, it is necessary to unscrew the small screw on the motor gear, remove the motor gear, and replace it with a gear that is compatible with the original gearbox.】

Product: AM32-45A brushless ESC

Using voltage range: 7.4-11.1V

Power supply : 2-3S

Current: Continuous current 45A Peak 280A

BEC output : 5V/2A

Battery connector: T plug

Size: 38.52818.5mm

Note: 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.make sure you do not mind before you bid.Thanks!
