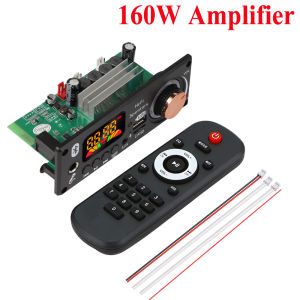

KEBIDU 160W Amplifier Bluetooth MP3 WAV Decoder Board 6.5mm Microphone FM TF USB Car Audio Module Music Player Volume Control

There are two types of products to choose from here1160W DC 5V-25V :2*80W Amplifier , DC 5V-25V,Bluetooth 5.12No Amp DC 12V :Without Amplifier , DC 12V,Bluetooth 5.11.Supports MP3/WMA/WAV/FLAC/APE lossless format music; Support external audio input LINE IN; Support FM radio reception, search frequency range 87.5MHZ-108.0MHz2.12V power supply (voltage range 6V-24V), current not less than 2A; equipped with microphone interface, supports recording function3.Color screen and digital screen display, allowing for intuitive viewing of device status; Four button multi-directional control (VOL+/VOL -/AUTO/MODE); Support infrared remote control operation at a distance of 10 meters, and support power-off memory function4.Support Bluetooth 5.1 function to achieve wireless audio connection; Supports MMC/SD/MMA and other cards, supports USB interface (USB flash drive) playback.Detailed Button Operation1. PREV button (previous track): In MP3 mode, VOL - short press for previous track, long press for volume reduction; Short press in FM mode to move up one station number; Short press under Bluetooth function to play the previous song on Bluetooth;2. AUTO button (play/pause): Short press AUTO in MP3 mode to play/pause; Short press to play/pause in FM mode, long press to automatically receive and coexist channels; Short press to play/pause under Bluetooth function.3. NEXT button (next track): In MP3 mode, short press VOL+for next track, long press for volume increase; Short press in FM mode to downgrade one station number; Short press under Bluetooth function to switch to Bluetooth next track;4. MODE button: Switch between USB/TF card/audio input/Bluetooth function in sequence;Recording Function Description1. Press and hold the MODE button to start recording, press and hold the MODE button again to cancel recording and play the recording file;2. When recording, a storage device such as a USB flash drive or TF card needs to be connected.SpecificationsPower: 2 * 80WFM frequency: 87.5-107.5 MHzVoltage: DC 12VCurrent: 2ABluetooth version: 5.1Products includeMP3 Decoder Board * 1Remote * 1Wired * 1Five Function Mode6.5mm Microphone Connection Interface, Enjoy singing voice smoothly.Widely compatible with multiple devicesNo Amp DC 12V160W DC 5V-25V
