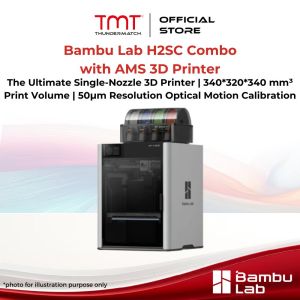

Bambu Lab H2SC Combo with AMS 3D Printer | The Ultimate Single-Nozzle 3D Printer | 340*320*340 mm³ Print Volume | 50μm Resolution Optical Motion Calibration | 1yr warranty GDT

Printing TechnologyFused Deposition ModelingBodyBuild Volume (WDH) 340mm320mm340mmChassis Aluminum, Steel, Plastic and GlassLaser Safety Windows Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade KitAir Assist Pump Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade KitPhysical DimensionsPhysical Dimensions 492mm514mm626mmNet Weight H2S: 30 kgH2S Laser Edition: 30.5 kgToolheadHotend All MetalExtruder Gear Hardened SteelNozzle Hardened SteelMax Nozzle Temperature 350 ℃Included Nozzle Diameter 0.4 mmSupported Nozzle Diameter 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mmFilament Cutter Built-inFilament Diameter 1.75 mmExtruder Motor Bambu Lab High-precision Permanent Magnet Synchronous MotorHeatbedSupported Build Plate Type Textured PEI plate, Smooth PEI PlateMax Heatbed Temperature 120 ℃SpeedMax Speed of Toolhead 1000 mm/sMax Acceleration of Toolhead 20,000 mm/s²Max Flow for Hotend (Standard Flow Hotend) 40 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)Max Flow for Hotend (Optional High Flow Hotend) 65 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature)Chamber Temperature ControlActive Chamber Heating SupportedMax Temperature 65 ℃Air PurificationPre-filter Grade G3HEPA Filter Grade H12Activated Carbon Filter Type Granulated Coconut ShellVOC Filtration SuperiorParticulate Matter Filtration SupportedCoolingPart Cooling Fan Closed Loop ControlCooling Fan for Hotend Closed Loop ControlMain Control Board Fan Closed Loop ControlChamber Exhaust Fan Closed Loop ControlChamber Heat Circulation Fan Closed Loop ControlAuxiliary Part Cooling Fan Closed Loop ControlFilament SupportedPLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPSSensorLive View Camera Built-in; 19201080Toolhead Camera Built-in; 16001200BirdsEye Camera Built-in; 32642448 (Equipped with Laser Edition)Door Sensor SupportedFilament Run Out Sensor SupportedFilament Tangle Sensor SupportedFilament Odometry Supported with AMSPower Loss Recovery SupportedElectrical RequirementsVoltage 100–120 VAC / 200–240 VAC, 50/60 HzMax Power¹ 2050 W@220 V / 1170 W@110 VWorking Temperature10 ℃-30 ℃ElectronicsTouchscreen 5-inch 7201280 TouchscreenStorage Built-in 8 GB EMMC and USB PortControl Interface Touchscreen, mobile App, PC AppNeural Processing Unit 2 TOPSSoftwareSlicer Bambu StudioSupports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.Supported Operating System MacOS, Windows, LinuxWi-FiOperating Frequency 2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC)5150-5850 MHzWi-Fi Transmitter Power (EIRP) 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)Wi-Fi Protocol IEEE 802.11 a/b/g/n10W Laser ModuleLaser Type Semiconductor LaserLaser Wavelength Engraving Laser: 455 nm ± 5 nm Blue LightHeight Measuring Laser: 850 nm ± 5 nm Infrared LightLaser Power 10 W ± 1 WLaser Spot Dimension 0.03 * 0.14 mm²Working Temperature 0 ℃–35 ℃Max Engraving Speed 400 mm/sMax Cutting Thickness 5 mm (Basswood Plywood)Laser Safety Class for Laser Module Class 4Overall Laser Safety Class² Class 1Engraving Area H2D: 310 * 270 mm²H2S: 310 * 260 mm²XY Positioning Method Visual PositioningXY Positioning Accuracy < 0.3 mmZ Height Measuring Method Micro LidarZ Height Measuring Accuracy ± 0.1 mmFlame Detection SupportedTemperature Detection SupportedDoor Sensor SupportedLaser Module Installation Detection SupportedSafety Key IncludedAir Pump Built-in; 30 kPa, 30 L/minVentilation Pipe Adapter Outer Diameter 100 mmSupported Material Type Wood, rubber, metal sheet, leather, dark acrylic, stone, and moreCutting ModuleCutting Area H2D：300285 mm²H2S：297.5300 mm²Drawing Area 300255 mm²Supported Pen Diameter 10.5 mm–12.5 mmCutting Mat Type LightGrip and StrongGrip Cutting MatsBlade Type 45°0.35 mmBlade Pressure Range 50 gf–600 gfMax Cutting Thickness 0.5 mmBlade and Pen Recognition SupportedCutting Mat Type Detection SupportedSupported Image Type Bitmap and Vector ImagesSupported Material Type Paper, PVC, vinyl, leather, and more*To ensure the heatbed quickly reaches the needed temperature, the printer will maintain maximum power for about 3 minutes.*When the printer's protection is complete and properly working, the printer and laser module work as a class 1 laser product.
