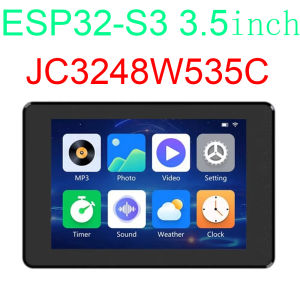

ESP32-S3 3.5 inch Capacitive Touch Display JC3248W535C IPS TFT 8M PSRAM 16M FLASH ESP32 WiFi BT Module for Arduino ESP LVGL

ESP32-S3 3.5" Capacitive Touch Display IPS TFT 8M PSRAM 16M FLASH 320X480 ESP32 WiFi BT Module for Arduino ESP LVGL Development Product descriptionThis LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can reach 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash size is 16MB, The display resolution is 320480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit . Reserve the TF card interface ,Up to 12 IO available, this module supports development in arduino IDE, ESP IDE, Micropython and Guition.Features● 3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors● 320X480 resolution● The sample program has been programmed in the factory and can be plugged in● With TF card slot for easy expansion storage● Provide arduino library functions and sample programs to facilitate rapid secondary development● Lithium battery charging and discharging circuit with overcharging and discharging protection● Up to 12 IOs can be used separately by customers● Support one-click download program● Military-grade process standards, long-term stable workProduct parametersDisplay color: RGB 65K colorSKU: Capacitive touch:JC3248W535C_I_YSize: 3.5 inchType: TFTDriver chip: AXS15231BResolution: 320480(Pixel)Effective display area: 73.4* 49.0(mm)Module size: 94.5*62.0(mm)View: IPSOperating temperature: -20℃~70℃storage temperature: -30℃~80℃Operating Voltage: 5VPower consumption: About 150mAProduct weight: About 80gPackage includes: 1 X ESP32-S3 3.5-inch capacitive touch IPS module
