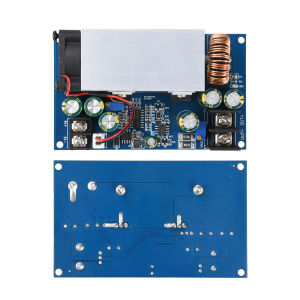

600W DC-DC Buck Module 12-75V to 2.5-60V CC CV Adjustable 25A Step-Down Power Supply Module Voltage Regulator Constant Current

600W DC-DC Buck Module 12-75V to 2.5-60V CC CV Adjustable 25A Step-Down Power Supply Module Voltage Regulator Constant CurrentProduct Features:1. The output voltage and current are continuously adjustable2. Terminal wiring, easy to use3. Easy to operate, increase clockwise and decrease counterclockwise4. Stable performance, with a maximum input voltage of 75 volts5. Adopting a step-by-step rectification scheme, the highest efficiency can reach up to 95%Main features of power module:*The module adopts a step-by-step rectification scheme, which has extremely high efficiency, with a maximum efficiency of up to 95%Continuous adjustable output voltage and currentThe input voltage can reach up to 75 volts, and the output voltage can reach up to 60V (when the input voltage is 75 volts) with a maximum current of 25 amps.Product Parameters:Product model: SZ-8025CCCVModule Name: 600W Voltage Reduction, Constant Voltage, Constant Current Adjustable Power Supply ModuleModule nature: Non isolated voltage reduction module (BUCK)Input voltage: 12-75VOutput voltage range: 2.5-60V (must meet voltage reduction conditions, IN input multiplied by 0.8)Minimum output voltage: 2.5VMaximum output voltage: Approximately equal to input voltage * 0.8 (e.g. input is 40V, 40V * 0.8=32V, maximum output voltage is 32V)Output constant current: 1-25A (continuously adjustable)Maximum output power: 600W (the working environment must be well ventilated)Continuous maximum working power: 500W (in ventilated environment)Continuous maximum operating current: 25A (in ventilated environment)Heat dissipation method: air-cooled heat dissipationInput undervoltage protection: NoneInput overvoltage protection: None (overvoltage prohibited)Working temperature: -10~+65 degrees CelsiusOperating frequency: 80KHzConversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and voltage difference)Short circuit protection: Yes (constant current protection)Reverse input protection: NoneOutput anti backflow: None (to charge the battery, output to inductive load, such as connecting to a motor, anti backflow diode must be added)Work indicator light: Yes (output voltage blue LED light)Wiring method: Comes with welding free terminal blocksModule size approximately: length 100mm, width 60mm, height 35mmWiring: "IN" is the input.'OUT' is the outputProduct List:1X power module
