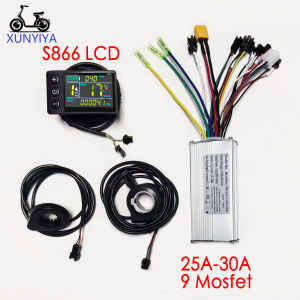

25A-30A Sine Wave Brushless Motor Controller 24V/36V/48V 350W S866 Color LCD Display P.A.S 12 Magnets Throttle Kit for E-Bicycle

24V/36V/48V sine wave Brushless motor controller 350W 30A For S866 V889 No. 2 protocol LCD instrument electric bicycle scooter24V, 36V, and 48V sine-wave brushless motor controller, 350W controller, suitable for 6-pin SM connector,protocol 2 instrumentation, e-bikes, lithium-ion scooters, mountain bikes, power-assisted scooters, etc.Specifications: 350W, 24V/36V/48VMaterial: Aluminum AlloyOperating Voltage: 24V/36V/48VRated Power:350WCurrent: 30ACase Dimensions: 12.553cmMOSFET: HY3410Functions: Headlight Power Supply, Throttle, protocol 2 instrumentation (display), 6-pin Hall Effect sensor, dual low-pressure brake (E-brake), power assist (PAS), self-studySpecifications: Features:This monitor is made of high-quality materials, lightweight, rainproof, strong and durable.The LCD display can clearly display status and data, the back light allows you to view the screen clearly in a dim environment, and the key operation is quick and easy to use.The controller is a brushless controller, which works quietly and reacts sensitively to the status of the e-bike.Easy to install and use, equipped with an LCD display bracket, suitable for 22.5mm handlebars.You can set the power-on password, control the lights, and assist. The speed is divided into 3/5/9 gears, and the number of gears is optional. You can choose to divide or not divide the gears by turning the handle.Suitable for electric bicycles and scooters.Specifications:Material: Plastic + LCD + MetalColor: As shown in the pictureController size: 12.5x 5 x 3 cmDisplay size: Approx. 8 x 5 cm/3.15 x 1.97 inchesWeight: Approx. 332 gramsPacking list:1 x LCD display1 x controller1 x P.A.S1 x throttleNote:Each cable is marked with different colors for different purposes.Red (VCC) instrument power lineBlue (K) controller power control lineBlack (GND) instrument ground lineGreen (RX) instrument data receiving lineYellow (TX) instrument data sending lineNote:1. The product power is set to 8 at the factory, which basically corresponds to most split superchargers on the market. If the customer uses an integrated supercharger, please set it to 12.2. P13 in the manual is the power setting of the product. If the supercharger is incompatible, the customer needs to adjust it to 8 or 12.3. Please note that the controller model is sent randomly. Please confirm whether you are satisfied before placing an order.How to use: After getting the product, please be sure to align the phase first: plug in the smart identification line and identify the motor. The identification line is two green lines. After plugging in, pay attention to suspend the car, and the motor will run automatically. At this time, if the direction of rotation of the motor is correct, run for 10 to 15 seconds, disconnect the identification line, if the direction is opposite, disconnect the identification line and plug it back, the motor direction will change to forward, run for another 10 to 15 seconds, disconnect the identification line, and the motor direction will change to forward. Run for another 10-15 seconds, disconnect the identification line, and the motor direction will change to forward. Run for another 10-15 seconds, disconnect the identification line, and it's done. After the identification is completed, the identification line remains disconnected, do not plug it backQ1. What voltages does this controller support?A: This controller supports 24V, 36V, 48V batteries.Q2. Is my motor a brushless motor? How can I tell?A: This controller is for brushless motors. Brushless motors are 3-phase wires + 5/6 Hall wires.Q3. The LCD displays an E06 error code after I install it, what is the problem?A: This is a battery undervoltage code, check if the battery is full and also please set your voltage in P03 in the LCD settings.Q4. The LCD shows E07 error code after my installation, what is the problem?A: This is a motor fault code, please check if the hall sensor and phase wire are connected correctly. And drive the motor with 4-5 high speed, E07 will disappear.Q5. My brushless motor only has 3-phase wires, can I use this LCD kit?A: We do not recommend LCD kit, but Hall will show E07 error code. We recommend our S810 LED panel kit, you can search in our shop.Q6. My motor reverses, what do I do?A: Please plug in the learning wire (auto-detect) to check your motor parameters for normal drive and compatibility, disconnect and plug in again to change the motor drive direction.Q7.My electric PAS power pedal is not working.A:Method 1: The diameter of the wheel with the magnet is too small, or the magnet is not aligned with the sensor. Replace it with a 12-magnet sensor.Method 2: The PAS sensor connector is loose. Try unplugging and replugging it, or change the wiring sequence.Q8. Can the product be used without a separate instrument panel?A: The product has a 5-pin instrument panel cable. Shorting the red and blue wires will start the device. Red is the positive power terminal, and blue is the ignition lock wire.
