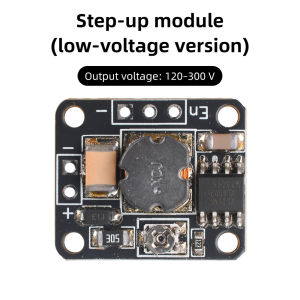

DC-DC Boost Converter 3.6-20V Input 120-300V/150-500V Output Ultra Compact High Voltage Power Module for DIY Ionizer

Features:1. Wide input voltage range: DC 3.6–20V, suitable for various device requirements2. Selectable high voltage: Output supports 120–300V or 150–500V (depending on model)3. Ultra-compact size: Miniature design, ideal for embedded applications, and flexible for various power supply scenarios4. Optimized circuit design: Utilizes high-efficiency boost technology for enhanced reliability5. Wide range of applications: Suitable for various DIY projects such as high-voltage power supplies and small ion generatorsProduct SpecificationsInput Voltage: DC 3.6–20VOutput Voltage: DC 120–300V; DC 150–500V (selectable)Dimensions: 20mm x 17mmThickness: 6.95mmPackage Contents:Module x 1Usage Instructions:1. Wide input voltage range; do not exceed 24V.2. The boost module does not have reverse polarity protection; pay attention to polarity.3. The module generates heat during operation; do not touch it with your hands.4. With a 12V input, it can stably power 4 LEDs.5. EN is the enable pin; the output is enabled by default and disabled at a low level.6. The recommended output current is less than 15mA.7. The adjustable resistor controls the output voltage; use an insulated screwdriver when adjusting.8. The module has a high-voltage output; be careful of electric shock.
