ANENG | ANENG AN101 Mini Digital Multimeter ABS Material 4000 Counts NCV Detector Data Hold Auto Power Off For Electronic Maintenance

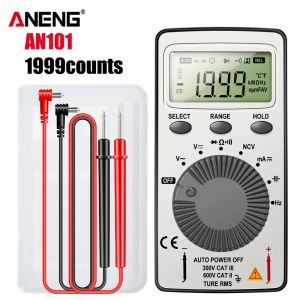

 ANENG AN101 Mini Digital Multimeter ABS Material 4000 Counts NCV Detector Data Hold Auto Power Off For Electronic Maintenance Product OverviewANENG AN101 is a compact pen‑type digital multimeter. It integrates multiple measurement functions including AC/DC current, AC/DC voltage, capacitance, resistance, frequency, NCV non‑contact voltage detection and live wire test. Small‑size and lightweight design, perfect for electrician on‑site test, electronic DIY and household circuit quick check.Core ParametersFunctionRangeResolutionPrecisionAC current0mA‑200mA1uA‑100uA±(2.5% + 10 d)DC current0mA‑200mA1uA‑100uA±(1.5% + 10 d)AC voltage0V‑600V0.01V‑1V±(1.5% + 8 d)DC voltage0mV‑600V0.1mV‑1V±(1.2% + 5 d)Capacitor0nF‑4mF1pF‑1uF±(5.0% + 6 d)Resistance0Ω‑40MΩ0.1Ω‑10kΩ±(1.5% + 10 d)Hz0Hz‑4MHz0.1Hz‑1kHz±(2.5% + 10 d)Diode✔Max Count4000 CountsBuzzer✔Auto power offNo operation for 15 minutes, automatic shutdownNCV✔Battery typeCR2032 button cell*1Live✔Manual range✔WeightBare metal 47gData retention✔MaterialABSLow battery indication✔Main Features 1.Pen‑shape compact body, only 47g, easy to hold and carry around for field testing. 2.Rich measurement functions: AC/DC current, AC/DC voltage, capacitance, resistance, frequency, diode test, continuity buzzer. 3.NCV non‑contact voltage detection and live wire identification function, safe for quick voltage judgment without touching circuit. 4.4000‑count high‑resolution display, manual range adjustment. 5.Data retention function to lock measured value for easy reading. 6.Low‑battery reminder informs user to replace battery timely. 7.15‑minute no‑operation automatic shutdown, extend battery service life. 8.ABS sturdy shell, suitable for daily electrician repair and electronic DIY work. Package List 1 × ANENG AN101 Pen‑type Multimeter 1 × Set of Test Probes 1 × User Manual (Battery is not included)
