433Mhz Wireless Light Switch Module DC 12V 1CH 10A Relay Receiver ON OFF Remote Control Transmitter For Gagate Door Lock DIY

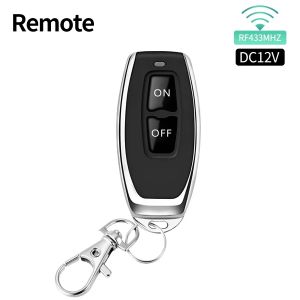

Please Note:The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .Specifications:Receiver(switch)Input voltage: DC 12VWorking current: 10AMaximum load power: 110WFrequency: 433MhzSupport encoding format: EV1527Wiring method: NC COM NOWorking mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )Remote Controller:Operating RF Frequency: 433MHz.Coded System: 1527 Learning Code.Working Voltage: DC 3V.Working Current: Transmitting Power: 10mW.Wireless Operating Distance: 50m(Free Space).Transmission Rate: 50 ~ 60KHz.Frequency Deviation: +0.2MHz or -0.2MHz.Color: Black.About Working Mode:Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15sHow To Use:1.Momentary modePress the learning key of the receiver once；and then press the A/ON button of the remote；The indicator light flash, indicating that the learning is successful；Press the button, the light will turn on; release the button, the light will turn off2.Toggle mode (self-locking)Press the learning key of the receiver twice；and then press the A/ON button of the remote；Toggle (self-locking) mode learning is complete3.Latched mode (internlock)Press the learning key of the receiver three times；press the A/ON button of the remote and then press the B/OFF button；Button A/ON turn on the light, and the button B/OFF turn off the light4.Delay functionPress the learning key of the receiver four times；and then press the A/ON button of the remote；The light will automatically turn off after 5 seconds；If you need a longer delay, you can press the learning key a few more times during pairing, and each additional press will delay for 5 seconds5.Clearing codeKeep press the learning key of the receiver；The indicator light flashes, indicating that the clearing code is successful
