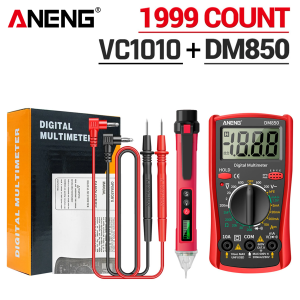

ANENG | ANENG DM850 Multimeter Comes With VC1010 Measuring Pen For Measuring AC/DC Voltage Current Resistance And Zero Wire Induction

ANENG DM850 Multimeter Comes With VC1010 Measuring Pen For Measuring AC/DC Voltage Current Resistance And Zero Wire Induction Product OverviewThis set consists of ANENG DM850 digital multimeter and VC1010 non-contact induction tester, which is a complete combination of household/electrical basic circuit testing tools. A multimeter can perform routine measurements of voltage, current, resistance, and electronic components. A measuring pen can quickly perform live line inspections, distinguish between neutral and live wires, and search for breakpoints. The combination of the two covers all basic needs such as home wiring, home appliance maintenance, socket testing, and daily circuit inspections.DM850 multimeter parametersFunctionRangeAccuracyDC Voltage200mV±(2% of rdg+3D)2000mV/20V/200V±(2% of rdg+5D)600V±(2.5% of rdg+5D)AC Voltage200V/600V±(2% of rdg+10D)Frequency Range45Hz~450HzAudible Continuity TestYesDC Current200uA/2000uA/20mA±(2% of rdg+2D)200mA±(2.5% of rdg+2D)10A±(2.5% of rdg+10D)Resistance200Ω±(2.5% of rdg+10D)2000Ω/20kΩ/200kΩ/2000kΩ±(2.5% of rdg+4D)Overload Protection15 secondVC1010 electrical measuring pen parametersTableSpecification DetailsExchange detection rangeApproximately 12~1000V, compatible with 50Hz/60HzDetection methodNCV non-contact voltage inductionAlarm formTriple reminder of sound, light, and screenAdditional ConfigurationWhite LED flashlightcore functionalityZero line identification, adjustable sensitivity for high and low levels, different strength of sound and light feedback electric fieldAuto ShutdownAutomatic power-off after 5 minutes of inactivitySecurity levelCE CAT.II 1000V / CAT IV 600VShell materialABS insulated plasticpower supplyTwo 1.5V AAA batteriesNet weightAbout 30gFunction Details1. The core function of DM850 multimeterBasic measurement of circuits: capable of detecting AC/DC voltage, DC current, and line resistance, meeting the requirements of socket voltage, household appliance circuit, and wire continuity detection;Component testing: supports the judgment of the quality of diodes and transistors, and is equipped with on-off buzzing to quickly troubleshoot circuit breaks and virtual connections;Practical design: Data retention can lock measurement values in narrow positions and support specialized testing for 1.5V low current; The 70cm extended brass probe makes measuring wiring more convenient, and the whole machine is lightweight and can be carried out without pressure.2. The core function of VC1010 measuring penNon contact live inspection: It is not necessary to peel off the insulation layer of the wire, and the line can be judged whether it is live through the outer skin, with high efficiency in inspecting breakpoints;Zero line distinction: relying on signal strength to distinguish between live and neutral lines, suitable for home sockets and switch circuit maintenance;Adjustable sensitivity: high and low sensitivity levels, adaptable to different detection scenarios of strong electrical environments and weak electrical lines, with differentiated sound and light feedback to intuitively distinguish electric field strength;Additional practical configuration: Comes with LED flashlight, dim distribution box, and auxiliary lighting for night maintenance; Idle automatic shutdown reduces power consumption, and high insulation safety level ensures daily operation safety.Packing ListANENG DM850 digital multimeter host x 1Test probe pairANENG VC1010 non-contact induction measuring pen x 1Supporting product manual
