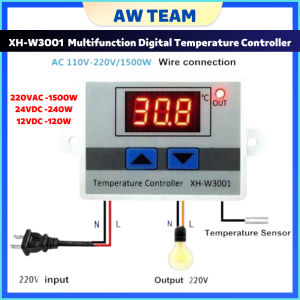

XH-W3001 Multifunction Digital Temperature Controller AC110-220V 12VDC 24VDC 1500W Thermostat Control Switch

XH-W3001Name:Temperature Controller1.Temperature measurement, display; refrigeration, heating control2.Temperature setting upper and lower limits3.Simple operation, suitable for seafood machines.4.Easy to install1.Measurement range: 50 Celsius ~ 110 Celsius2.Control range: 50 Celsius ~ 110 Celsius3.Measuring accuracy: plus or minus 0.2 Celsius4.Control precision: plus or minus 0.1 Celsius5.Measuring input: NTC10K L= 1 m waterproof probe6.Power: 1500W7.Input voltagr:110V-220V8.Current:Max 10A9.Size: 60 * 45 * 30 mmHow to use:1. Press the up button show the starting temperaturelong press UP button the temperature display Flashing , press the UP or Down button Set the start temperature value2. Press the Down button show the Stop temperaturelong press Down button the temperature display Flashing , press the UP or Down button Set the stop temperature valuePackage includes:1 * 220V LED Temperature Controller1 * Thermostat Control Switch ProbeNote: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.STC-3028 : Front panel size : 75(L) x 34.5(W)(mm)Mounting size : 71(L) x 29(W)mm;sensor length : 1m (include the probe).Product size75(L) x 34.5(W) x 85(D)mm;Technical Parameters : Temperature measuring range : -50 - 99°C;Resolution : 0.1°C;Accuracy : ±1°C (-50 - 70°C);Sensor error delay : 1 minutePower supply : 220VAC±10%, 50/60Hz;Power consumption : ≤3W;Sensor : NTC sensor (1PC);Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC;mbient temperature : 0 - 60°C;Storage temperature : -30 - 75°C;Relative humidity : 20% - 85% (No condensate).STC-1000 :Switch the modes between cool and heat;Control temperature by setting the temperature setting value and the difference value;Temperature calibration;Refrigerating control output delay protection;Alarm when the temperature exceeds temperature limit or when sensor error.Specification and size :Front panel size : 75(L) x 34.5(W)(mm)Mounting size : 71(L) x 29(W)mm;sensor length : 1m (include the probe).Product size75(L) x 34.5(W) x 85(D)mm;Technical Parameters :Temperature measuring range : -50 - 99°C;Resolution : 0.1°C;Accuracy : ±1°C (-50 - 70°C);Sensor error delay : 1 minutePower supply : 220VAC±10%, 50/60Hz;Power consumption : ≤3W;Sensor : NTC sensor (1PC);Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC;mbient temperature : 0 - 60°C;Storage temperature : -30 - 75°C;Relative humidity : 20% - 85% (No condensate).Package includes :1 x 220V Mini Digital Temperature Controller Thermostat1 x Temperature sensor probe with 1M cable1 x Instruction Manual
