DC 12V 10A Relay Receiver Mini Module for 433Mhz Universal Remote Control Switch Gate Garage Door LED

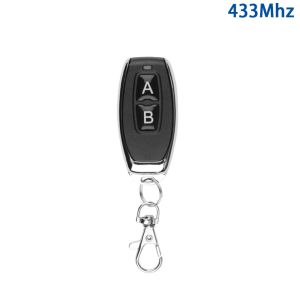

About Working Mode:Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects. Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects. Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect. Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15sSpecifications:Receiver(switch) Input voltage: DC 12V Working current: 10A Maximum load power: 110W Frequency: 433Mhz Support encoding format: EV1527 Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s ) Remote Controller: Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code. Working Voltage: DC 3V. Working Current: Transmitting Power: 10mW. Wireless Operating Distance: 50m(Free Space). Transmission Rate: 50 ~ 60KHz. Frequency Deviation: +0.2MHz or -0.2MHz. Color: Black.Please Note:The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
