Directional Antenna 1575M 2.4Ghz 5.8Ghz High Gain PCB Yagi Antennas LNA GPS 2.4G 5.8G WIFI RF POWER Amplifier Drone FPV RC ANT

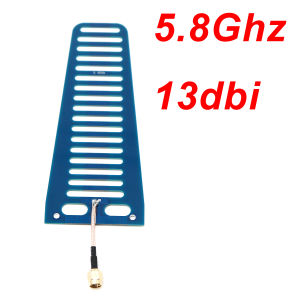

1575MHz / 2.4GHz / 5.8GHz Directional antenna High‑Gain Antennas – Range Extension for GPS, WiFi, FPV, RC ControlProduct Description:This set of three high‑gain directional antennas is designed for long‑range wireless applications: 1575MHz (GPS/BeiDou/Galileo/GLONASS), 2.4GHz (WiFi/FPV/RC), and 5.8GHz (FPV/RC). Each antenna offers high gain (11.5–13dBi), low VSWR, and robust construction with SMA connectors. Ideal for drone flight controllers, long‑range FPV video links, RC remote control range extension, and precision positioning.1. 1575MHz High‑Gain Positioning Antenna (GPS / BeiDou / Galileo / GLONASS)Bandwidth: 1550 – 1610 MHzImpedance: 50ΩGain: 11.5 dBiVSWR: Radiation Angle: H=50°, E=120°Max Power: 50WConnector: SMA male (inner thread, inner pin) with adapterDimensions: 15 × 10 cmPolarization: LinearApplication: GNSS positioning for drones, flight controllers, surveying2. 2.4GHz High‑Gain Directional Antenna (WiFi / FPV / RC)Frequency: 2.4 – 2.483 GHzImpedance: 50ΩGain: 12.5 dBiVSWR: Radiation Angle: E=48°, H=75°Max Power: 30WConnector: SMA male (with adapter)Dimensions: 15 × 70 cmPolarization: LinearImportant: Narrow beamwidth – suitable for long‑range, requires precise alignment. Ideal for long‑range FPV drone video and RC control.3. 5.8GHz High‑Gain Directional Antenna (FPV / RC Range Extension)Bandwidth: 5.6 – 6.0 GHzImpedance: 50ΩGain: 13 dBiVSWR: Radiation Angle: H=52°, E=45°Max Power: 20WPolarization: LinearConnector: SMA (adapter included) – antenna board size: 150×60 mm (without connector)Application: Long‑range FPV video, RC control, drone telemetryCommon Features:All antennas are directional, high‑gain (11.5–13dBi)50Ω impedance, SMA connector (with adapters)Designed for long‑range wireless links (GPS positioning, WiFi, FPV, RC)Low VSWR, high efficiencyApplications:Drone flight controller GNSS positioning (1575MHz)Long‑range FPV video downlink (2.4GHz / 5.8GHz)Remote control range extension (2.4GHz / 5.8GHz)WiFi point‑to‑point links (2.4GHz)Surveying and mapping (1575MHz)
