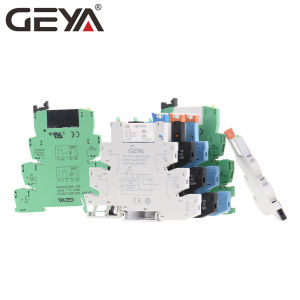

WH GEYA UL Slim Relay Module PLC 12/24VAC/DC 48V/110V/230VAC Relay module Socket 6.2mm thickness 6A

Welcome to Wang Hong !!! Function features: 1. 6A Rated Operation Current 2. 1 C/O Contact 3. Compact size only 6.2mm thickness 4. LED Indicator when relay is energizes 5. Protection Circuit Specifications: Size (LxWxH): 80×6.2x94mm Rated voltage: 12V DC.24V DC Max voltage: 130% rated value Rated current: 12V:9mA 24V:11mA Operating voltage: 80% rated voltage Resetting voltage: 5% rated voltage Consumption power: ≈0.14W Output contact: 1-pole (NO+NC) Contact type: Single group transfer Contact load: 6A 250V AC/5A 30V DC Max transfer voltage: 380V AC/125V DC Max transfer power: 150V AC/150W Max operating frequency: 300times/min Mechanical life: 5×10⁶ operations Electrical life: 1×10⁵ operations Applicable wires: 1.5mm²/AWG16 Below Any questions are welcome to ask
