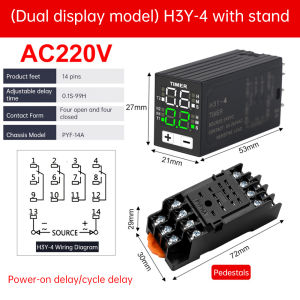

Aideepen | H3Y-4 AC 220V DC 12V DC 24V Time Relay Cycle Time Control Delayer Power on Delay Device Digital Display With Base Power Supply

Product Features1. PC shell, fire-resistant and heat-resistant2. LED high-definition screen, digital display panel is more intuitive3. Silver contacts, stable performance, anti-oxidation, high work efficiency4. Large capacity pins at the bottom, made of copper galvanized material, with high melting point, strong oxidation and corrosion resistance, and good conductivity5. There are three delay modes: N1 power on delay mode, N2 delay release mode, and N3 cyclic delay mode6. Widely used: Suitable for multiple fields such as automation equipment, electromechanical cabinets, electrical control, power protection, etcProduct SpecificationsProduct model: H3Y-4 (14 pin/four open and four closed with base)Product Name: Time RelayVoltage: DC12V, 24V, 220V (optional)Time range: 0.1S-99HN1 mode power on delay: four sets of delayed closingN2 mode delayed release: power on four groups to engage, delay four groups to disconnectT1 T2 cycle mode: T1 T2 on/off can be set at different timesEnvironmental temperature: -25~75 ℃Installation method: Matching PYF-14A base device typeSetting operation instructionsMode description: N1 mode is power on delay, N2 is delayed release, T1 and T2 are cyclic delaysWorking mode: Long press+and one key for more than 3 seconds, click one key to change working modeTime base setting: Press and hold the+key for more than 3 seconds to enter, click the+key to change the time specification. Click one button to change T2 time specification in loop modeNumerical setting: Click the+key to increase time, click the one key to decrease time. Press and hold one key for more than 3 seconds in loop mode to enter T2 value settingExtension explanation: No operation for more than 8 seconds, save current settings and exitImportant note: When a set of instantaneous contacts is needed to achieve circuit self-locking, please set the mode to N2 and follow Figure 2 for wiring, which is simpler and more reliableShipping ListTime relay * 1Base*1
