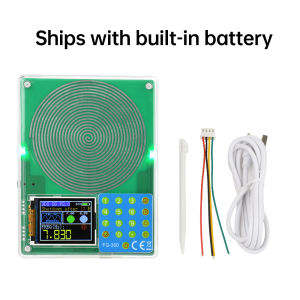

FG-300 1.8-inch TFT Colour Screen Schumann Wave Generator 0.001Hz-200KHz Adjustable Signal Generator Multiple Waveform Outputs

Product Features:1. Utilises a low-temperature-drift crystal oscillator and high-precision DDS frequency synthesis, offering high frequency stability with a resolution of up to 0.001 Hz; accuracy at low frequencies reaches 0.001 Hz2. Capable of outputting up to 13 waveforms to meet various requirements3. Features a colour 1.8-inch TFT LCD display with direct frequency input via the numeric keypad, ensuring intuitive and convenient operation4. Includes a sleep timer, signal indicator brightness adjustment and screen backlight brightness adjustment5. All settings are automatically saved, eliminating the need to reconfigure the device upon the next start-upProduct Overview:The FG-300 is a multifunctional, high-precision, portable signal generator capable of producing a variety of waveforms, including sine waves, square waves, triangular waves, positive sawtooth waves, negative sawtooth waves, ECG, half-wave, Lorentz, Gaussian, Singer, exponential rising, exponential falling, and 7.83 Hz Schumann waves, The on-board helical antenna functions as a high-precision Schumann wave generator, making it suitable for a wide range of applications including electronic research and development, production testing, education and teaching, repair and maintenance, and audio testing.Product Specifications:Frequency range: Sine wave 0.001 Hz–200 kHz (with flat output amplitude up to 100 kHz; as the frequency increases further, the output amplitude decreases and distortion increases); other waveforms 0.001 Hz–20 kHz (however, there is no upper limit on the adjustable frequency; if requirements for distortion and jitter are not stringent, the operating frequency can be increased further)Waveform Types: Sine wave, square wave, triangle wave, positive sawtooth wave, negative sawtooth wave, ECG, half-wave, Lorentz, Gaussian, Singer, exponential rise, exponential fall, and 7.83 Hz Schumann waveOutput Amplitude: 2.5 V VPPOutput Impedance: 330 ΩDisplay: 1.8-inch TFT displayPower supply voltage: USB Type-C 5VDimensions: 127 × 98 × 18 mmPackage contents:Main unit × 1Type-C power cable × 14-pin signal output cable × 1Stylus × 1
