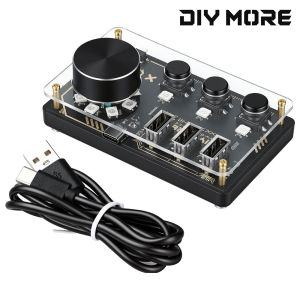

Aideepen | DC 5V DIYMORE HUB DM-H1 HUB Programmable Keyboard Controller with RGB WS2812B LED HID Hub

Features:1. Driver-free, plug-and-play; supports multiple operating systems; online visual configuration via browser2. Multifunctional HID controller; buttons and knobs can be customized to create key combinations3. Equipped with 11 RGB LEDs and 6 built-in cool lighting effects, offering a rich variety of lighting options4. Settings are stored locally; configurations are retained even after power loss; each device has a unique ID5. USB-powered with a streamlined, stable hardware design; easy to get startedProduct Overview:The DIYMORE HUB is a 3-button + knob USB HID controller equipped with 11 WS2812B RGB LEDs and a web-based configuration tool. It is plug-and-play, requires no driver installation, and allows real-time adjustment of all settings via the Chrome or Edge browser.Features:USB HID Composite Device: Simultaneously supports four types of HID devices—keyboard, media controls, rotary knob, and system power3 Programmable Buttons: Each button can be bound to up to 3 key values, supporting combinations of modifier keys, keyboard keys, and media keysEC11 Rotary Encoder: A knob with a button; rotating it sends a rotary encoder signal, and pressing it enters Bootloader mode11 RGB LEDs: 3 button indicator lights + 8 ring-shaped encoder light strips, with 6 switchable lighting effectsWebHID Web Configuration: No software installation required; configure all parameters directly in a web browserConfiguration Persistence: All settings are saved to the device’s internal memory and are retained even after power lossUnique Device ID: Each device has a unique 6-digit identifierHardware SpecificationsMain Control Chip: CH554T (enhanced 8051 core)Buttons: 3 physical buttons + 1 lighting mode switchKnob: EC11 rotary encoder (with push button)Lights: 11 WS2812B RGB LEDsInterface: USB Type-A (driver-free HID)Power Supply: USB bus-powered (5V)System Requirements:Windows: Windows 10 or latermacOS: macOS 11 or laterLinux: Kernel 5.0+, requires libusbBrowsers: Chrome 89+, Edge 89+, Opera 75+ (WebHID support required)Lighting Modes:Mode - Name - Effect Description0 - Off: All lights off1 - Static: Single-color steady light; hue and saturation adjustable2 - Breathing: Single-color breathing gradient; hue and speed adjustable3 - Rainbow: Cycling through hues; speed adjustable4 - Comet: Rotating light trails; hue, saturation, and speed adjustable5 - Button Light: Corresponding LED lights up and fades when a button is pressed; knob position is displayed on the light ringProduct List:Controller1100CM data cable1
