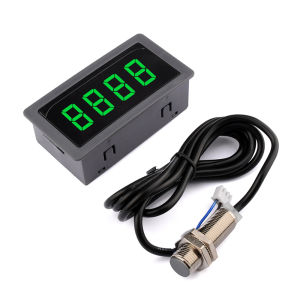

Aideepen | DC 8-24V High - precision Digital Speedometer Hall Sensor 10 - 9999RPM DC Tachometer 0.56 Inch 4 - bit LED Digital Display Mete
Aideepen | DC 8-24V High - precision Digital Speedometer Hall Sensor 10 - 9999RPM DC Tachometer 0.56 Inch 4 - bit LED Digital Display Mete
- Made of high-quality materials, ensuring product quality.2. A multifunctional speed measurement/counting meter with speed measurement and counting functions.3. This product is compatible with various detection switch signals such as Hall switches, metal proximity switches, and infrared proximity switches.4. The sensor has high sensitivity, strong reliability, good anti-interference performance, and can work stably for a long time.5. It has a wide range of applications, reliable performance, and simple installation.Input Voltage: DC8-24VHall Sensor: NPN type 5VMeasurement Range: 10-9999RPMMeasurement Accuracy: ±0.1%Display Mode: 0.56-inch digital tubeShell Material: ABS plasticLength of Hall Switch Cable: 1 meterPanel Opening: Length * Width 76mm39.5mmInstallation Method: Embedded The input voltage must be distinguished between positive and negative, and 220V household voltage cannot be input. When installing the electromagnet and the Hall switch, pay attention to the polarity of the magnet. If there is no speed display when the magnet passes near the Hall switch, turn the other side of the magnet. The installation must be firm to prevent it from being thrown out at high speed. The effective distance between the front of the Hall switch and the magnet is The Hall switch and the motor mostly need to be fixed with brackets, and the Hall switch of the motor cannot be held by hand for speed measurement. The magnet is fixed on the large-diameter rotating shaft, and the turntable must rotate as concentrically and horizontally as possible. Shaking or non-horizontal rotation is likely to lead to failure of detection or inaccurate detection.1 Speed Measurement Meter1* Sensor1* Magnet
