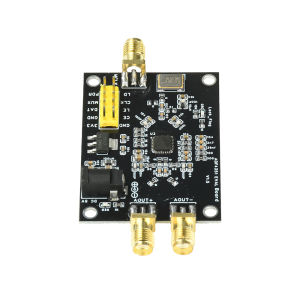

Aideepen | 35M-4.4GHz RF Signal Source ADF4351 Signal Generator Board SMA RF Phase-Locked Loop Module 35M-4400M Output

Features:1. Supports a wide frequency range of 35 MHz to 4.4 GHz, with fundamental sine wave and subharmonic square wave outputs.2. Supports three-wire SPI control, as well as spot frequency, sweep frequency, and frequency hopping modes.3. Step size as low as 0.1 K; stable at ±50 ppm with a 25 MHz crystal oscillator.4. Supports 5 V/3.3 V power supply, making it an ideal tool for RF engineering R&D and testing.5. Equipped with an SMA female connector, making it easy to integrate into other devices or systems.Product IntroductionThe ADF4351 development board is a high-performance, wideband RF signal source based on the ADF4351 chip, with an output frequency range covering 35 MHz to 4.4 GHz. It outputs sine waves from 2.2 GHz to 4.4 GHz and square waves from 35 MHz to 2.2 GHz, and is equipped with an SMA female connector.It comes standard with a 25 MHz high-precision crystal oscillator, controlled via a three-wire SPI interface, and supports spot, sweep, and frequency-hopping modes. The product supports 3.3 V/5 V power supplies, making it an ideal tool for RF engineering R&D and testing.Product Specifications:Output Frequency Range: ADF4351: 35 MHz–4,400 MHz (4.4 GHz)Output Signal: 2200M–4400M fundamental (sine wave); 35M–2200M fundamental submultiplies (square wave)Output Signal Interface: SMA female connectorDefault: ±50 ppm, 25M imported active crystal oscillatorCircuit diagrams and STM32 test programs are provided.Control Method: 3-wire SPI, with control pins and lock status pin exposed. Supports all functions, including fixed-frequency, frequency sweeping, and frequency hopping. Step size can be as small as 1K; at low frequencies, it can be as small as 0.1K, depending on the crystal frequency.Notes:1. Can be powered via the 3.3V pin; the power supply must provide a current of at least 500mA.2. Typical operating voltage is 5V.Package Contents:35M–4400M RF Signal Generator Module × 1
