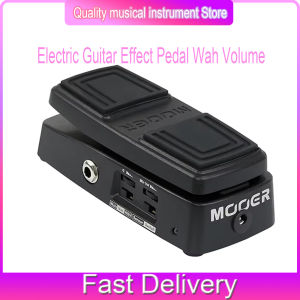

Mooer | MOOER Free Step Electric Guitar Effect Pedal Wah Volume Pressure Sensing Switching True Bypass Pedal Guitar Accessories

MOOER Free Step Electric Guitar Effect Pedal Wah Volume Pressure Sensing Switching True Bypass Pedal Guitar Accessories PartsModeFreestep has 3 different modes which can be changed usingthe "MODE switch" on the side of the pedal.Wah: Wah effect only. You can operate the wah with two different methods in this mode which can be changed using the "SENSOR/SWITCH" control.1、With this control in SENSOR position, simply place the sole of your foot onto the pedals pressure sensor pads to activate the effect.Remove your foot to deactivate the effect.2、With this control in the SWITCH position, lean forward and apply slight pressure to the front of the pedal with your foot while the pedal is in the full toe down position to push the Touch Switch and activate the effect.The effect will remain active until you use the same method to deactivate it.Use the Q range dial to adjust the sound of the wah effectVOL: Volume pedal only. In this mode freestep will behave like any ordinary volume pedal. Heel down is minimum volume and toe down is maximum volume. Minimum volume can be adjusted between 0%-50% using the MIN VOL dial on the side of the pedalW&V: Wah and Volume mode. In this mode freestep will act as a volume pedal by default. To activate and deactivate the wah effect, use the second method described above in 'wah mode'. The SENSOR/SWITCH control is inactive in this mode.1、When in Volume mode the LED's will illuminate blue.2、When actively in wah mode the LED's will illuminate red.SpecificationInput：1/4” mono audio jack.（Impedance: 1M Ohms）Output：1/4” mono audio jack（Impedance: 100 Ohms）Power requirements: 9V DC, center negative.Current Draw: 70 mADimensions: 154.5mm(D)×73mm(W)×53mm(H)Weight: 540gPacking list:1 * Guitar Pedal1 * User Manual1、Doubles up as a Wah and Volume in one Pedal2、MOOER’s custom inductor provides a truly delicious Wah sound3、Q Range control allows the user to dial in the Wah tone4、Selectable foot sensing control or traditional ‘toe down’ on and off operation in Wah mode5、Smooth, seamless volume control6、Retains every nuance and detail of your original tone
