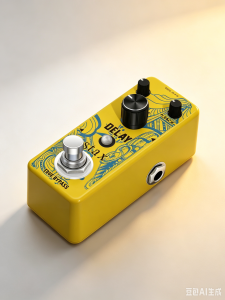

STAX LEF-314 Guitar Delay Pedal Analog Delay Guitar Effect Pedal Switching Fully Vintage Delay True Bypass

Product OverviewSTAX LEF-314 is a compact pure analog tape-style delay pedal built with classic BBD bucket brigade circuit, reproducing warm organic vintage tape echo tone beloved by blues, classic rock, indie and country guitar & bass players. Adjustable delay time spans 20ms short slap echo up to 620ms long spacious ambient repeats. Three independent control knobs let users precisely tweak delay length, wet echo volume and feedback repeat intensity, ranging from subtle tight slapback rhythm echo to endless self-oscillating feedback swell for atmospheric lead textures. Bright yellow die-cast zinc alloy ultra-mini chassis drastically saves pedalboard space for bedroom practice, studio tracking and long live touring gigs. Adopts standard 3PDT hardwire true bypass circuit, completely retains raw clean instrument tone with zero volume drop, signal loss or unwanted tone coloration when bypassed. Core Key FeaturesPure Analog BBD Tape Echo CircuitWarm natural decaying tape saturation, no harsh thin digital artifacts, retains full low-end bass response for bass guitar, organic breathing vintage echo character.Three Independent Tone Shaping KnobsTIME: Adjust delay time 20ms–620ms; short slapback for rockabilly, long repeats for ambient post-rockECHO: Control wet delayed signal volume, balance dry clean tone and echo layersF.BACK (Feedback): Set number of echo repeats; max setting creates self-oscillating infinite swell feedbackFull 3PDT Hardwire True BypassUnbroken direct instrument signal path, zero hum, no signal attenuation when pedal disengagedClear Red LED Status IndicatorBright light clearly visible under dim stage lighting to confirm active effect stateShockproof Bright Yellow Die-Cast Zinc Alloy HousingPalm-sized ultra-small footprint, scratch-resistant solid yellow metal shell, anti-slip rubber bottom pad for stable pedalboard placementUltra Low Stable Power ConsumptionOnly 11mA working current, fully compatible with standard 9V center-negative daisy-chain power suppliesFull Technical SpecificationsModel: LEF-314 Analog Tape DelayBrand:STAXEffect Type: Pure Analog BBD Vintage Tape Echo Delay PedalDelay Time Range: 20ms – 620msControls: TIME / ECHO / F.BACKInput Jack: 1/4” mono, Input Impedance: 1M OhmsOutput Jack: 1/4” mono, Output Impedance: 470 OhmsWorking Current: 11mAPower Supply: DC 9V center-negative barrel plug (adapter NOT included)Material: Die-Cast Zinc Alloy Metal ChassisDimensions: 90(D) × 38(W) × 48(H) mmNet Weight: 140gPackage Total Weight: 250gCompliance Certifications: FCC VOC, CE EMC/LVD, RoHS CertifiedPackage Includes1 × LEF-314 Analog Tape Delay Pedal1 × English User Manual1. Manufacturer & Business Entity InfoBrand Name:STAXManufacturer Factory: STAX Audio Equipment Factory, Dongguan City, Guangdong Province, ChinaUS Selling Entity: Sole Proprietor Local Warehouse Operator (Irvine, California)Main Products: 300 series mini analog modulation/delay/overdrive/distortion/fuzz pedals, ABY signal switchers, DI Boxes, LEF series multi-effect stompboxes, LFS looper & control footswitchesService Support: Retail sales, small bulk wholesale, OEM private custom logo service for global music instrument retailers worldwide2. Global Safety Compliance CertificationsFCC VOC (North American US Market): Compliant with US electromagnetic interference standards for audio electronic devicesCE Certification (EU & UK): EMC Electromagnetic Compatibility + LVD Low Voltage Safety CertificationRoHS Compliance: Restricts hazardous heavy metals inside circuit boards & metal housings3. Product Safety PrecautionsPower SafetyOnly use regulated DC 9V center-negative power adapter with minimum 500mA output. Mismatched voltage or reversed polarity will permanently damage internal analog circuit boards. Unplug power supply when unused or during thunderstorms to avoid surge voltage damage.Mechanical Operation SafetyDo not apply heavy force to footswitch, three control knobs and 1/4” audio jacks to prevent internal hardware failure. Unauthorized disassembly of the zinc alloy housing will void the 6-month limited warranty for pre-owned 95% like-new inventory.Cleaning & Storage RulesClean metal housing only with dry soft cloth; alcohol, chemical solvents, detergent or abrasive cleaners are strictly forbidden. Store pedals in cool dry indoor space, avoid long-term direct sunlight, humid air, violent vibration and heavy physical impact.Usage Environment WarningDo not operate this delay pedal near water, rainy outdoor environments or high-power magnetic equipment to prevent audio signal distortion and short circuit risk.
